Zenitel Connect Net (Zenitel Connect Pro)

Introduction

Zenitel Connect Pro (ZCP) servers can be interconnected using the feature Zenitel Connect Net (ZCN). Up to 20 ZCPs are supported in Zenitel Connect Net.

There are two ways to call a user in another ZCP:

• Prefix: Dial the Prefix + the external extension number
• Integrated number plan: Simply dial the extension number without any prefix

Calls between ZCPs supports video.

Zenitel Connect Net (ZCN) is a licensed feature. A ZCL-PBX license is required per trunk

Adding Zenitel Connect Net and defining the Prefix

Go to Devices and Connections > Zenitel Connect Net and click the to add a new connection.

• Prefix: The digit(s) to dial to access the ZCN.
• Name: Any descriptive text
• Peer Address: The IP address of the remote ZCP. If the peer uses a port other than 5060 or 5061 it can be added to the address.
• SIP Transport: protocol to use (UDP, TCP or TLS)
• SIP Authentication: Username and Password to authenticate incoming calls.

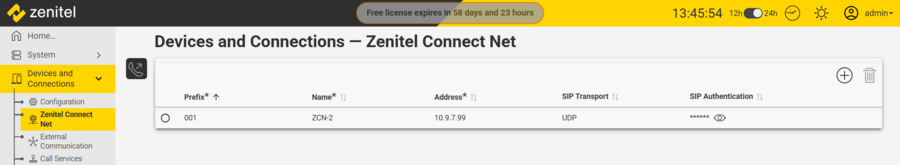

Defining a ZCN connection. Here: Dial 001 + remote extension to set up a call

Integrated Number Plan

By using Integrated Number Plan one can reach remote extensions without having to dial a prefix.

To add Integrated Numbers select a defined trunk and click on on the left.

In the Zenitel Connect Net External Numbers pane to the right, click on to define the number & name of the extension in the remote ZCP server.

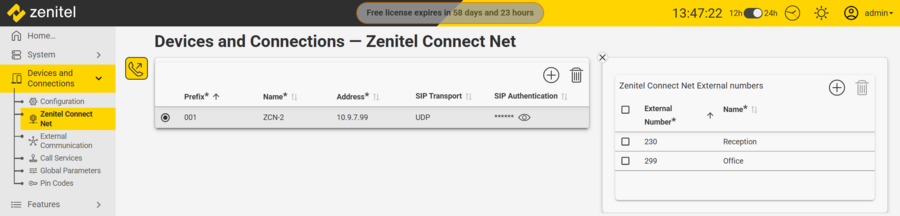

Here the numbers 230 and 299 will be routed to the remote ZCP with IP address 10.9.7.99.

Additional information

Broadcast/Group Call is working locally in each server only. Global broadcast is currently not supported
