Empty a group (Event Handler): Difference between revisions

Latest revision as of 10:35, 8 July 2022

This is a script which removes all members from a group.

Here dialing the event trigger 9534 will remove all members of group 48.

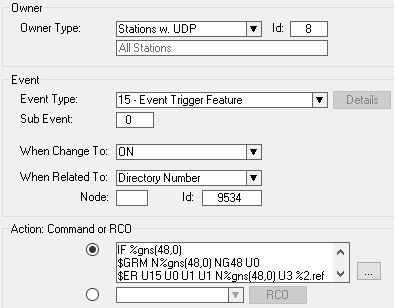

In AlphaPro, go to Exchange and System -> Events, press Insert and create the following event:

Action commands:

IF %gns(48,0)
$GRM N%gns(48,0) NG48 U0
$ER U15 U0 U1 U1 N%gns(48,0) U3 %2.ref
ENDIF

AMC 9: The script uses approx. 3 seconds to empty a group of 100 members. 17 seconds when 552 members

AMC 11: The script uses approx. 2 seconds to empty a group of 552 members

@@ Line 1: / Line 1: @@
-'''This is a script which removes all members from a group.
+{{AI}}
-Here dialing event trigger 9534 will remove all members of group 48:'''
+'''This is a script which removes all members from a group.'''
+Here dialing the event trigger 9534 will remove all members of group 48.
+In [[AlphaPro]], go to [[Exchange_%26_System_%28AlphaPro%29#Events|Exchange and System -> Events]], press Insert and create the following event:
+[[File:Application13a.png|500px|left|thumb]]
+<br style="clear:both;" />
+{{Code2|
+ [[IF/ENDIF|IF]] [[%gns]](48,0)
+ [[GROUP MEMBERSHIP|$GRM]] N[[%gns]](48,0) NG48 U0
+ [[EVENT_REPORT|$ER]] U15 U0 U1 U1 N[[%gns]](48,0) U3 %2.ref
+ [[IF/ENDIF|ENDIF]]
+}}
-In [[AlphaPro]], go to [[Exchange_%26_System_%28AlphaPro%29#Events|Exchange and System -> Events]], press Insert and create the following events:
 ------------
-{|
-|-
-|width="100pt"|'''Event Owner''':
-|width="400pt"|Stations w/ UDP, Id: 8 (All stations!)
-|-
-|'''Event type''': || [[Event Trigger (Event Type)|15 - Event Trigger]]
-|-
-|'''When change to''': || ON
-|-
-|'''When related to''': || Directory number, Id: 9534
-|-
-|'''Action''': || [[IF/ENDIF|IF]] [[%gns]](48,0)
-|-
-| &nbsp; || [[GROUP MEMBERSHIP|$GRM]] N[[%gns]](48,0) NG48 U0
-|-
-| &nbsp; || [[EVENT_REPORT|$ER]] U15 U0 U1 U1 N[[%gns]](48,0) U3 %2.ref
-|-
-| &nbsp; || [[IF/ENDIF|ENDIF]]
-|-
-|}
-------------
+{{Note|AMC 9: The script uses approx. 3 seconds to empty a group of 100 members. 17 seconds when 552 members}}
+{{Note|AMC 11: The script uses approx. 2 seconds to empty a group of 552 members}}
-AMC 9: The script uses approx. 3 seconds to empty a group of 100 members. 17 seconds when 552 members.
-AMC 11: The script uses approx. 2 seconds to empty a group of 552 members.
-[[Category:Applications]]
+[[Category: AlphaCom Applications]]
+[[Category: ICX-AlphaCom Applications]]
+[[Category:Applications using Event Handler]]
