Overview

The procedure for deploying IP-intercom stations is

  1. Planning your system
  2. Discovery of intercom devices
  3. Identification of intercom devices and assigning a directory number
  4. Software upgrade
  5. Configuration
  6. Verifying configuration

A Wizard will guide you through the procedure.

Planning the installation

Plan your installation by collecting configuration data you would need to setup your system.

Planning an IC-Edge Installation

IC-Edge systems should be configured from the IC-Edge Controller, Use IMT only for firmware upgrade.

Planning an ICX-AlphaCom Installation

The table below is an example of data you would need for a typical AlphaCom IP intercom installation.

ICX-AlphaCom system parameters

Parameter Value
Station mode ICX-AlphaCom
ICX-AlphaCom Site 1 10.4.2.2
IP gateway Site 1 10.4.2.1
IP address range Site 1 10.4.2.x
IP network mask Site 1 255.255.255.0
ICX-AlphaCom Site 2 10.7.2.2
IP gateway Site 2 10.7.2.1
IP address range Site 2 10.7.2.x
IP network mask Site 2 255.255.255.0

ICX-AlphaCom system intercom information

Dir. No. Name Location (Site) IP configuration MAC-address* Host name Other
101 Hans B1, F1, R1 10.4.2.7 00:13:CB:01:5F:27 Zenitel-101
102 Thomas B1, F1, R2 10.4.2.8 00:13:CB:06:01:4C Zenitel-102
103 Front Door B1, Main Entrance 10.4.2.9 00:13:CB:00:AA:38 Zenitel-103 Noisy environment
104 Back Door B1, Back Door 10.4.2.10 00:13:CB:00:1B:CA Zenitel-104
201 Emil B2, F3, R6 DHCP 00:13:CB:01:5F:28
202 Frano B2, F3, R8 DHCP 00:13:CB:06:01:45
203 Lab B2, Lab Entrance DHCP 00:13:CB:00:AA:39
204 Datacenter B2, Datacenter DHCP 00:13:CB:00:1B:CE
Note icon * IT is not needed to obtain all the MAC addresses upfront. The ICX-AlphaCom directory report from the Discovery Wizard Finish step has the MAC addresses in the directory list.''


Planning a Pulse Installation

The tables below are examples of data you would require for a typical Pulse system installation.

Pulse system parameters

Parameter Value
Station mode Pulse
Server site 192.16.8.29
IP gateway site 192.16.8.1
IP address range site 192.16.8.x
IP network mask site 255.255.255.0

Pulse system intercom information

Dir. No. Name Location (Site) IP configuration MAC-address Host name Other
101 Reception Reception 192.16.8.29 00:13:cb:00:32:d0 Flush Master IP Master Station
102 John Smith Head Office DHCP 00:13:cb:02:5d:94 Desk Master IP Desktop Station
103 Peter Brink Head Office DHCP 00:13:cb:02:5c:8e Desk Master IP Desktop Station
201 Entrance Main Entrance DHCP 00:13:cb:06:3a:3e TCIV-3 IP Substation
202 Elevator Main Hall DHCP 00:13:cb:08:00:fe TMIS-1 IP Substation
301 Office 1 1st floor DHCP 00:13:cb:06:of:9e TCIS-5 IP Substation
302 Office 2 2nd floor DHCP 00:13:cb:06:2a:54 TCIS-4 IP Substation
303 Office 3 3rd floor DHCP 00:13:cb:06:06:22 TCIS-6 IP Substation

Planning a SIP Installation

The tables below are examples of data you would require for a typical SIP IP intercom installation.

SIP system parameters

Parameter Value
Station mode SIP
Server site 192.16.8.100
IP gateway site 192.16.8.1
IP address range site 192.16.8.x
IP network mask site 255.255.255.0

SIP system intercom information

Dir. No. Name Location (Site) IP configuration MAC-address Host name Other
101 Reception Reception 192.16.8.29 00:13:cb:00:32:d0 Flush Master IP Master Station
102 John Smith Head Office 192.16.8.18 00:13:cb:02:5d:94 Desk Master IP Desktop Station
103 Peter Brink Head Office 192.16.8.19 00:13:cb:02:5c:8e Desk Master IP Desktop Station
201 Entrance Main Entrance 192.16.8.32 00:13:cb:06:3a:3e TCIV-3 IP Substation
202 Elevator Main Hall 192.16.8.34 00:13:cb:08:00:fe TMIS-1 IP Substation
301 Office 1 1st floor 192.16.8.35 00:13:cb:06:of:9e TCIS-5 IP Substation
302 Office 2 2nd floor 192.16.8.36 00:13:cb:06:2a:54 TCIS-4 IP Substation
303 Office 3 3rd floor 192.16.8.39 00:13:cb:06:06:22 TCIS-6 IP Substation

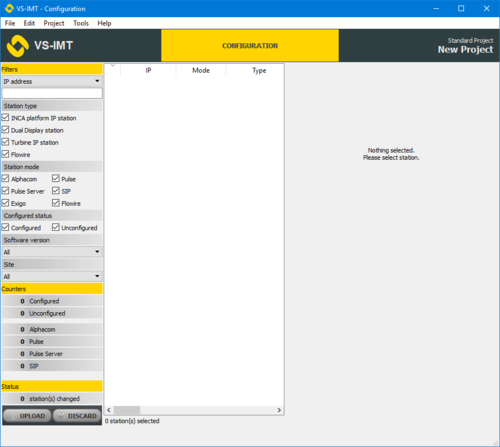

Station Discovery and Upgrade Wizard
