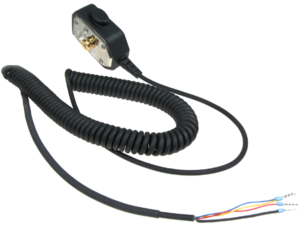

- Handheld microphone for EX applications
- PTT key
- Noise cancelling microphone
- High quality digital background noise reduction
- IP66 Rating
- Designed for Exigo EX access panels & Turbine EX explosion proof intercom stations
Connecting the microphone EMMAX-1H to the TFIX station
- Open the TFIX Enclosure

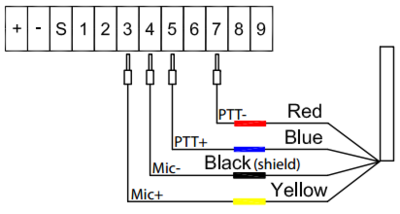

- Connect the wire ferrules on the Compact Microphone cable to the terminal block according to the pin configuration below.
Connecting the microphone EMMAX-1H to the TFIX-V2 station

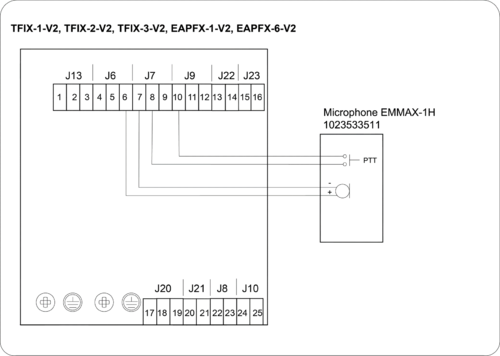

- Connect the wire ferrules on the Compact Microphone cable to the connectors according to the pin configuration below.
Configuration

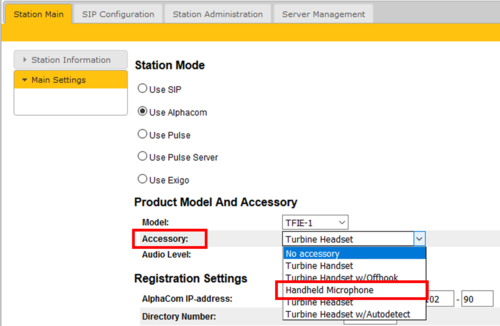

- Log on to the station web interface
- In Station Main > Main Settings, set Accessory to "Handheld Microphone".

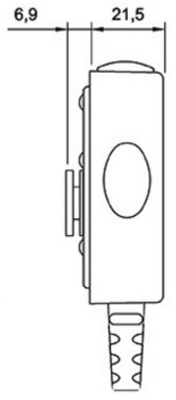

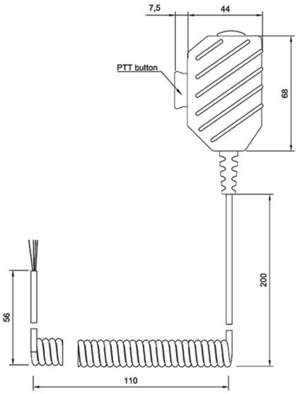

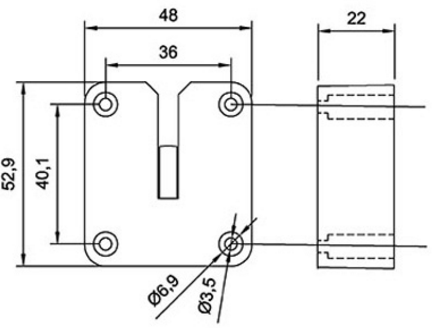

Dimensions
| Dimensions (WxHxD) | Weight | |
| EMMAX-1H | 44 x 68 x 21.5 mm | 0.22 kg |
