ENA Amplifier - Basic configuration (SIP mode)
From Zenitel Wiki

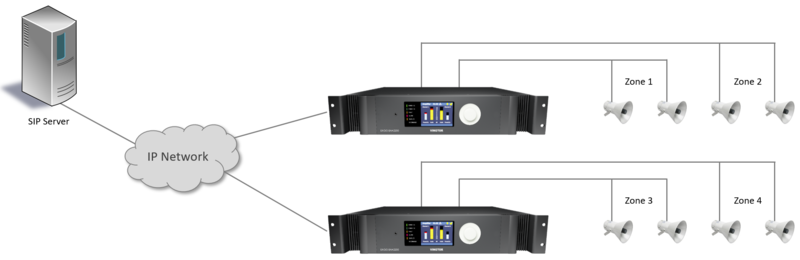

This article describes the basic configuration required for a Exigo Network Amplifier (ENA) to operate with an SIP server. The ENA Amplifiers are configured through their web interface.
For a more detailed description of various settings and options, see ENA Configuration - SIP mode.
Contents
Configure the amplifier
Registration Settings
Use the web browser on a PC to log on to the web interface of the amplifier, go to Main > Main Settings, and:
- Set Mode = "SIP"
- Select the preferred Internet Protocol (IPv4 or IPv6)
- Configure the IP Settings (IP address) of the amplifier
|
To find the IP address of the amplifier, use the Menu Selection Knob on the front of the amplifier, and navigate to Information > Network. |
- Go to SIP Configuration -> Account/Call and configure relevnt parameters for the SIP account:
Configure Loudspeaker lines
In the Amplifier Settings > Line Control, you can configure Loudspeaker Line Voltage to 70 or 100V, enable or disable channels and set a master volume.
Multicast Paging
To enable and configure multicast the advanced configuration mode must be enabled.
When advanced configuration mode are enabled go to SIP Configuration > Multicast Paging to enable and configure multicast.
