Wall Master Station, Standard - 1007040000
From Zenitel Wiki

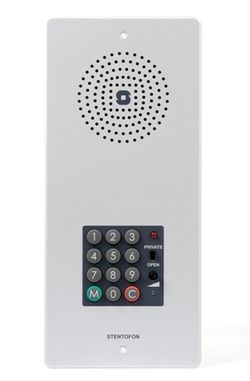

This wall master station 1007040000 is designed for both flush and surface mounting on the wall. Back-boxes are available for this purpose. Typical application areas are stores & warehouses, factory shop floors and laboratories.
The station is a fully equipped master station with free access to all extensions and features.
A Modular Jack plug on the station end gives quick and easy connection to the station’s circuit board.

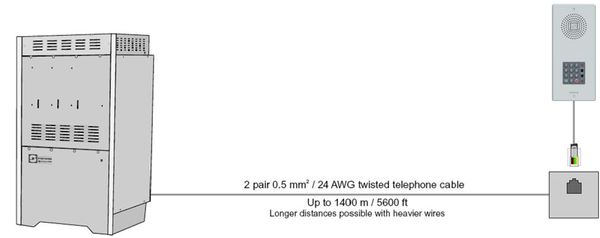

2-pair 0,5 mm2 twisted telephone cable is required between the exchange and the station. The maximum distance is 1,4 km (4600 feet) with 0,5 mm2 cable. Greater distances is possible by using heavier wires.
The station is equipped with an electret microphone - which automatically adjusts to the audio level - and a 63 Ohm / 1 W loudspeaker. The loudspeaker volume is easily adjustable with a screwdriver using the potentiometer located on the outside of the front plate.
Contents
Features
- Fully equipped master station with free access to all extensions and features.
- Rugged front plate of anodised brushed aluminium.
- Private / Open switch.
- Red “microphone live” lamp.
- Built-In 63 Ohm / 1W loudspeaker.
- Adjustable loudspeaker volume.
- Excellent sound quality.
Installation
Mounting
The station can be mounted in:
Additional information
New electronics for the 1007040000 Wall Master Station
As from late 2009 the 100704000 station is using the same PCB as is used on the display stations 1007042000 and 1007043000. This means that the 1007040000 will be recognized as a display station by the AlphaCom exchange, and that the station no longer can be used in TouchLine Compact systems or in TouchLine systems with non-display subscriber boards (AB boards).
