Wall Master Station, Display - 1007042000
From Zenitel Wiki
This wall master station 1007042000 is designed for both flush and surface mounting on a wall and back boxes are available for this purpose. In addition to the AlphaCom E and AlphaCom systems the station can be used with the former TouchLine displaysystems. Typical applications areas are stores & warehouses, factory shop floors and laboratories. The station is a fully equipped master station with free access to all extensions and features. The station includes programmable single touch keys and a 2 x 16 character alphanumeric display providing caller identification, on-line help and a directory service amongst other features.

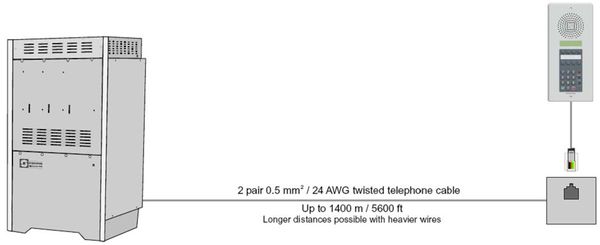

A Modular Jack plug on the station end gives quick and easy connection to the station’s circuit board. 2-pair 0,5 mm2 twisted telephone cable is required between the exchange and the station. The maximum distance is 1,4 km (4600 feet) with 0,5 mm2 cable. Greater distances is possible by using heavier wires.
The station is equipped with an electret microphone - which automatically adjusts to the audio level - and a 63 Ohm / 1 W loudspeaker. The loudspeaker volume is easily adjustable with a screwdriver using the potentiometer located on the outside of the front plate.
Features
- Fully equipped master station with free access to all extensions and features.
- Eight freely programmable single touch keys.
- 2 x 16 character alphanumeric display
- Rugged front plate of anodised brushed aluminium.
- Private / Open switch.
- Red “microphone live” lamp.
- Built-In 63 Ohm / 1W loudspeaker.
- Adjustable loudspeaker volume.
- Excellent sound quality
Installation
Mounting
The station can be mounted in:
