1-4j. RCO, Call indication (practice)

From Zenitel Wiki

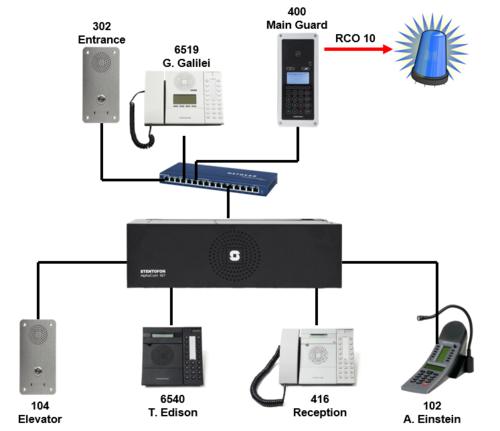

System configuration


Exercise

Private Ringing indication

  • When calling the Main Guard in private ringing mode, a lamp controlled by the relay in the station should be activated when the private ringing starts. (The Main Guard must be set in “Private” mode by pressing the C-key for more than 2 sec.).
  • The lamp should be turned off when the private ringing stops.
  • Use logical RCO 10 to operate the relay


Call Queue indication

  • When the Main Guard receives a Call Request, the same lamp should be activated to indicate that there is one or more calls in the call queue (Tip: Use event "Priority Mail Present").
  • The lamp should be turned off when there are no more calls in the queue.
