Solution
Private Ringing indication
- When calling the Main Guard in private ringing mode, a lamp controlled by the relay in the station should be activated when the private ringing starts. (The Main Guard must be set in “Private” mode by pressing the C-key for more than 2 sec.).
- The lamp should be turned off when the private ringing stops.
- Use logical RCO 10 to operate the relay

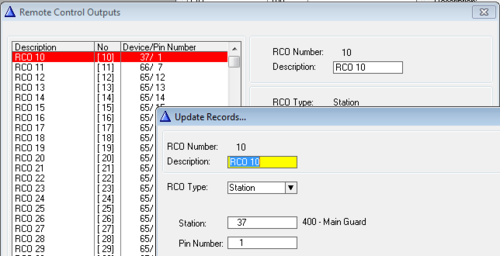

The first step is to map the logical RCO 10 to the relay of station 400. Go to Exchange & System > RCO, and select RCO 10 from the list box:
Update the AlphaCom (Send Change).
For these setting to take effect, the AlphaCom must be restarted. In AlphaPro, press the Reset button.

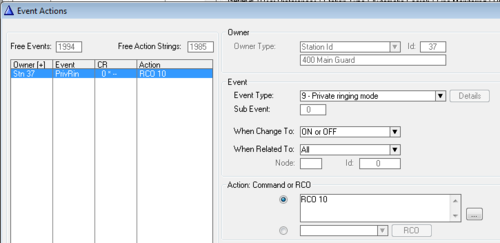

The next step is to create an event that operates the RCO 10 when the right conditions are met. In Users & Stations, select the station "Main Guard" from the list box, and press the button Events. Insert a new event with the following properties:
Call Queue indication
- When the Main Guard receives a Call Request, the same lamp should be activated to indicate that there is one or more calls in the call queue (Tip: Use event "Priority Mail Present").
- The lamp should be turned off when there are no more calls in the queue.

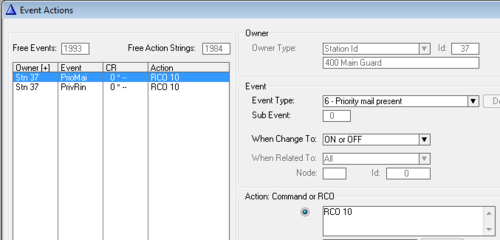

Create an event that operates the RCO 10 when there is calls in the call queue.
In Users & Stations, select the station "Main Guard" from the list box, and press the button Events. Insert a new event with the following properties:
