AMC-IP software upgrade (Black AMC-IP board)
From Zenitel Wiki
(Redirected from AMC-IP software upgrade)
This article describes how to upgrade the software in an AlphaCom XE server, running a black AMC-IP board (hardware revision 5 or later).
The black AMC-IP board replaced the red AMC-IP board (hardware revision 4) in 2010.
Backup customer data
The AlphaPro configuration data might get lost after the upgrade. The configuration data MUST be backed up by doing a GetAll operation from AlphaPro before the upgrade is performed.
The IP settings (settings done from the web interface, such as IP address and Filters) are kept after the update.
|
The system configuration will get lost during the upgrade. It is crucial to perform a GetAll from AlphaPro prior to the upgrade |
Software Upgrade
- Download the Board Support Package bsp_32.4.3.12.apkg
- Download the AMC firmware alpha-sys_13.2.3.16.apkg
- Install the BSP package first:

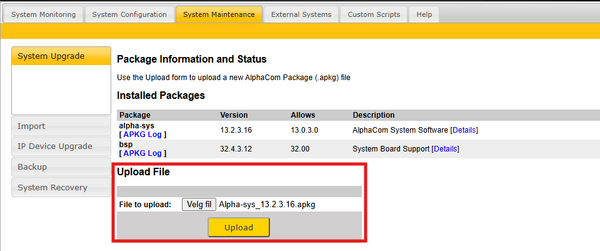

- Log in to the AlphaCom XE Web interface and select System Maintenance > System Upgrade.
- Browse to the downloaded bsp_32.4.3.12.apkg file, and select Upload.
- When the upload is finished an Install button will appear. Press this button to start the upgrade. The upgrade status is shown in the web browser.
- When the installation is finished, the AlphaCom XE server will restart
- Next step is to install the AMC firmware:
- When the AlphaCom XE is up and running again, log in to the AlphaCom XE Web interface and select System Maintenance > System Upgrade.
- Browse to the downloaded alpha-sys_13.2.3.16.apkg file, and select Upload.
- When the upload is finished an Install button will appear. Press this button to start the upgrade. The upgrade status is shown in the web browser.
- When the installation is finished, the AlphaCom XE server will restart with the new software.
Restore customer data
Restore the customer data by doing a SendAll operation from AlphaPro. Restart the AlphaCom XE server after the SendAll is finished.
