Automatic Volume Control (AVC)

From Zenitel Wiki


Automatic Volume Control (AVC) is a feature in the Zenitel IP devices. The microphone of the device is constantly measuring the ambient noise. The AVC feature automatically adjusts the volume of the loudspeaker to compensate for the ambient noise in an effort to make the audio signal better heard and understood above the noise. The AVC will perform better if the "Speaker Volume" is set to a fairly low level, as this will give the AVC more headroom for adjustments. The AVC feature works very well in combination with the Dynamic Range Compression (DRC) feature.

Note that the volume is not adjusted while the speaker is playing audio. Adjustments are made in silent periods (min. 100 ms silence required).

Enabling the AVC feature

How to enable the AVC feature depends on the mode of operation.

Note icon The web interface might look different in different firmware versions



SIP mode

Log in to the Zenitel IP device, and navigate to SIP Configuration > Audio Settings, and enable "Automatic Volume Control (AVC)":

Enabling AVC on a device in SIP mode



IC-Edge mode

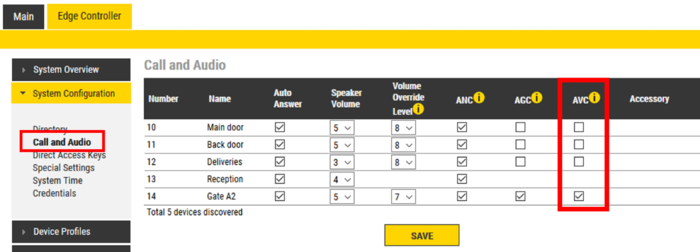

Log in to the Edge Controller, and navigate to Edge Controller > System Configuration > Call and Audio, and enable "AVC":

Enabling AVC in an IC-Edge system



ICX-AlphaCom mode

Log in to the Zenitel IP device, and navigate to Advanced ICX-AlphaCom > Audio Settings, and enable "Automatic Volume Control (AVC)":

Enabling AVC on a device in ICX-AlphaCom mode



AVC - Advanced configuration

To access the "AVC Advanced Settings" you first need to enable Advanced Configuration in the top right corner of the web interface.

Go to Audio Settings. Under Audio signal processing enable AVC Advanced Settings:

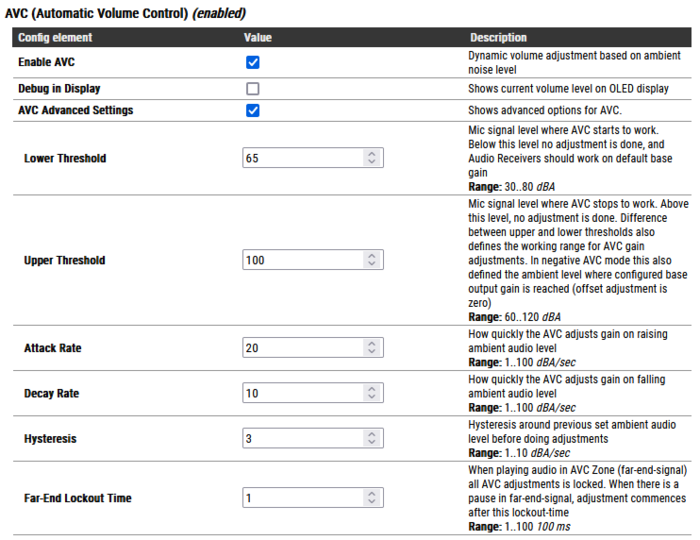

"AVC Advanced" settings



  • Enable AVC: Check the box to enable automatic volume control. Volume is adjusted according to the ambient noise level. The AVC will perform better if the loudspeaker volume is set to a fairly low level, as this will give the AVC a more dynamic range for adjustments. Note that the AVC adjustment is disabled while the speaker is playing audio. Adjustments are made in silent periods (min. 100 ms silence required).
  • Debug in Display: When enabled the station shows current volume level in the OLED display (applicable to TCIS-4, TCIx-5 and TCIx-6 stations). Very useful during testing or demo of the AVC feature.
  • AVC Advanced Settings: Check to open for more advanced AVC settings
    • Lower Threshold: Threshold level for the AVC to start working. Valid range: 30-80 dBA. Default is 55 dBA.
    • Upper Threshold: Threshold level for the AVC to stop working. Valid range: 60-120 dBA. Default is 100 dBA.
    • Attack Rate: How quickly the AVC adjusts gain on raising ambient audio level. Range: 1..100 dBA/sec. Default is 20 dBA/sec.
    • Decay Rate: How quickly the AVC adjusts gain on falling ambient audio level. Range: 1..100 dBA/sec. Default is 10 dBA/sec.
    • Hysteresis: Hysteresis around previous set ambient audio level before doing adjustments. Range: 1..10 dBA/sec. Default is 3 dBA.
    • Far-End Lockout Time: The AVC adjustments are locked while the device is playing audio. When there is a pause in the audio (silence), adjustment commences after this lockout-time. Range: 1..100. Resolution is 100 ms. Default is "1" (= 100 ms).


Note icon All audio settings can be reset to default values by selecting Factory Reset Audio Settings.
