Cisco Call Manager 6 configuration

From Zenitel Wiki

SIP Icon 300px.png

Software requirement: The SIP intercom must have firmware 01.11.x.x or later.

Configuring the Cisco Call Manager

Add New User

User Management -> End User -> Add New

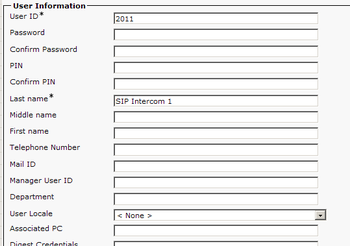

SIP Intercom Configuration - User Information
  • User ID: 2011
  • Last Name: SIP Intercom 1
  • Press Save


Add New Phone

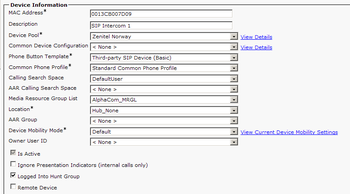

SIP Intercom Configuration - Device Information

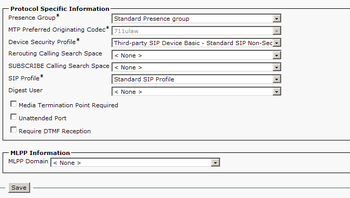

SIP Intercom Configuration - Protocol Specific Information

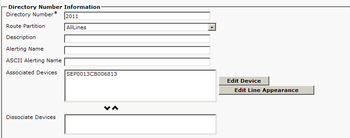

SIP Intercom Configuration - Directory Number Configuration
Device -> Phone -> Add New
  • Phone Type: Third-party SIP Device (Basic)
  • Press Next
  • MAC Address: Enter your SIP Intercoms MAC address
  • Description: SIP Intercom 1
  • Device Pool: Zenitel Norway
  • Phone button Template: Third-party SIP Device (Basic)
  • Calling Search Space: DefaultUser
  • Media Resource Group List: AlphaCom_MRGL
  • Owner User ID: 2011
  • Device Security Profile: Third-party SIP Device (Basic) - Standard SIP - Non-secure
  • SIP Profile: Standard SIP Profile
  • Digest User: 2011
  • Press Save
  • In the upper left corner press ”Line [1] – Add a new DN]
  • Enter wanted directory number (here 2011)
  • Route Partition: AllLines
  • Calling Search Space: defaultUser
  • Press Save
  • Press Reset/Restart


Configuring the Stentofon SIP Intercom

Log on to your SIP Intercom by entering the IP address of the station in your web browser.

SIP Account Settings

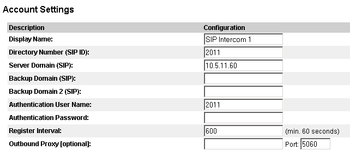

Stentofon SIP Intercom Configuration - SIP Account Settings
SIP Configuration -> SIP Settings
  • SIP Display Name: SIP Intercom 1
  • SIP ID: 2011
  • SIP Domain: The Cisco IP Address
  • Authenitcaion User Name: 2011
  • Press Save SIP configuration
  • Press Reboot, and OK.


Speed Dial Settings

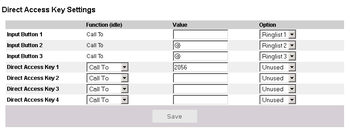

Stentofon SIP Intercom Configuration - Direct Access Key Settings
SIP Configuration -> Direct Access Key Settings

Here you define the call pattern of your SIP Intercom.

Call Settings

SIP Intercom Configuration - Call Settings
SIP Configuration -> SIP Settings

Here you define how incoming calls to the SIP Intercom is treated. Microphone and Speaker levels are adjustable from here.

Audio Settings

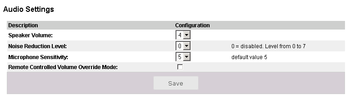

SIP Intercom Configuration - Audio Settings
SIP Configuration -> Audio Settings

Microphone and Speaker levels are adjustable from here.

Related articles

Configuration guide for Cisco Call Manager 6
