EBMDR-8
From Zenitel Wiki
The EBMDR-8 Expansion Module is a slave unit to the ECPIR-3P and to the ECPIR-P Call Panels. The EBMDR-8 hence receives power from and communicates through its master, the ECPIR-P/ECPIR-3P.
Highlights
- Button expansion module for Call Panels ECPIR-P and ECPIR-3P
- Powered from master Call Panel
- Eight programmable buttons with individual labels and status indicators
- Optional button protection covers
- Four units can be connected to one Call Panel (ICX-AlphaCom, AlpaCom XE, SIP, Edge, Pulse)
- No additional licenses required for the expansion module (AlphaCom 11.5.3.3 or later, Turbine 4.7 and later)
Exigo Button Expansion Module EBMDR-8

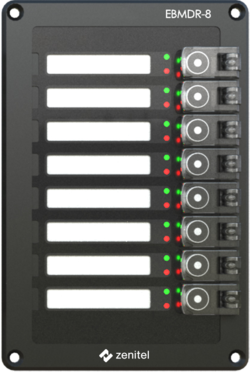

The EBMDR-8 button module features eight fully programmable buttons.
Up to four EBMDR-8 modules may be daisy-chained to one ECPIR giving maximum 35 programmable buttons.
- Power off the ECPIR station by disconnecting the ethernet cable or the external power supply.

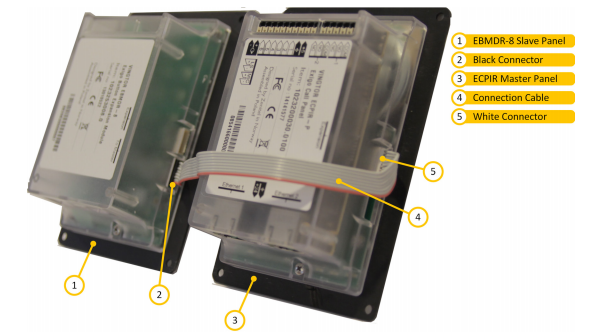

- Using the small connection cable supplied, connect the EBMDR-8 expansion module to the ECPIR or preceding module as shown in the figure.
- Connect the white connector on the cable to the corresponding white connector on the ECPIR or preceding EBMDR-8.
- Connect the black connector on the cable to the corresponding black connector on the EBMDR-8.
Configuration
- EBMDR-8 - Configuration (AlphaCom)
- Direct Access Key & Ringlist Settings (Pulse)
- Direct Access Key & Ringlist Settings (SIP)
