EMMAI-2H
From Zenitel Wiki
Handheld Compact Industrial Microphone.
Highlights
- Handheld microphone for industrial applications
- PTT key
- Bracket included
- Noise cancelling microphone
- High quality digital background noise reduction
- IP66 Rating
- Low smoke and halogen free cable
- Designed for Exigo industrial access panels and Turbine industrial intercom stations
Connecting the microphone EMMAI-2H to the TFIE station
- Open the TFIE Enclosure
- Plug the IDC connectors of the Microphone cable into the J8 terminal block according to the pin configuration below.
Connection details:
Configuration
- Log in to the station web interface
- Navigate to Audio Settings.
- Set "Accessories" to "Handheld Microphone".
- Reboot the station.

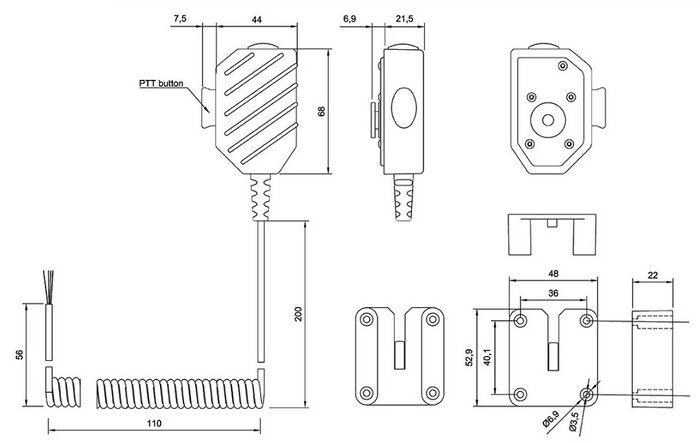

Dimensions
