Event Viewer
From Zenitel Wiki

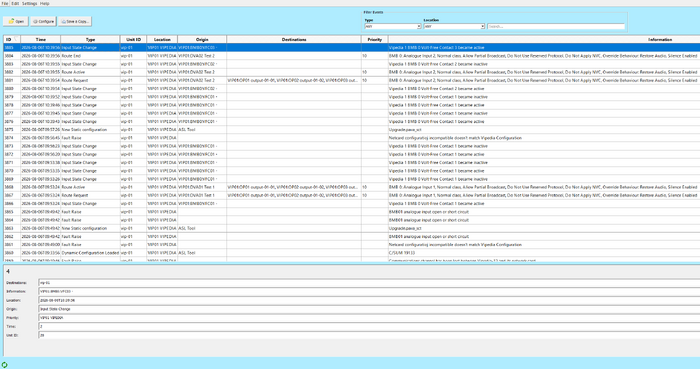

Event Viewer is a tool used for investigating system faults, and operational issues, to assist with their resolution.
It lists key event status's with routing details such as source, destination, priority and permissions.
Key Points
- Can be used to validate testing.
- Can be stored for offline review.
- Works on netcard version 3.x.x. onwards.
- Event Viewer can only be configured whilst utilising the Vipedia-NET card/cards.
- You can add as many Monitored Devices as needed.
- There are 3 ways you can set up Event Viewer for operation, shown below:
Set up instructions
- Manual Configuration
- Configuration with the SCT VIPA File
- Configuration by polling device for VIPA File
Examples

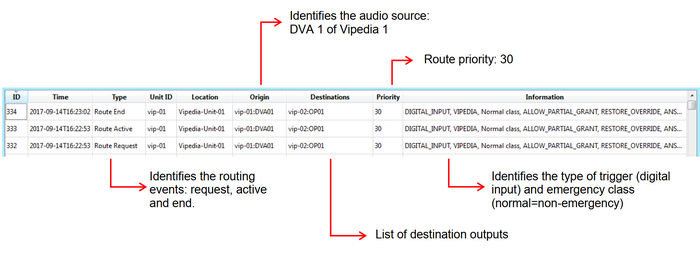

- Contact Input DVA Route
 |
| Example showing a non-emergency DVA triggered by a digital input. |

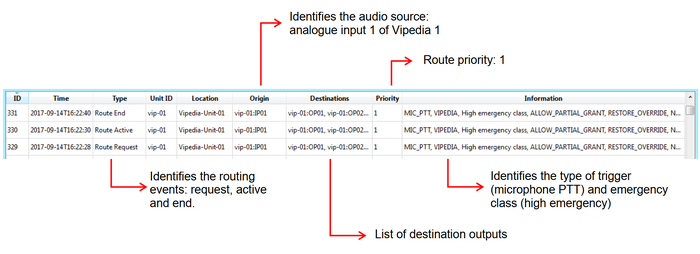

- Microphone Announcement
 |
| Example showing a high emergency live announcement |
- Contact Input - Analogue input route
|
| Example showing a non-emergency analogue input (e.g. BGM) triggered by an analogue input |

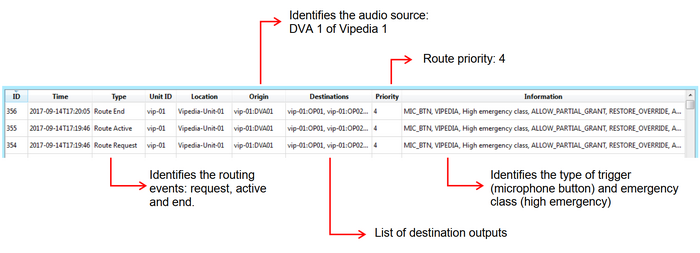

- Microphone Button - DVA Route
 |
| Example showing a high emergency DVA triggered by a microphone button. |
