Event Viewer - Config File Configuration

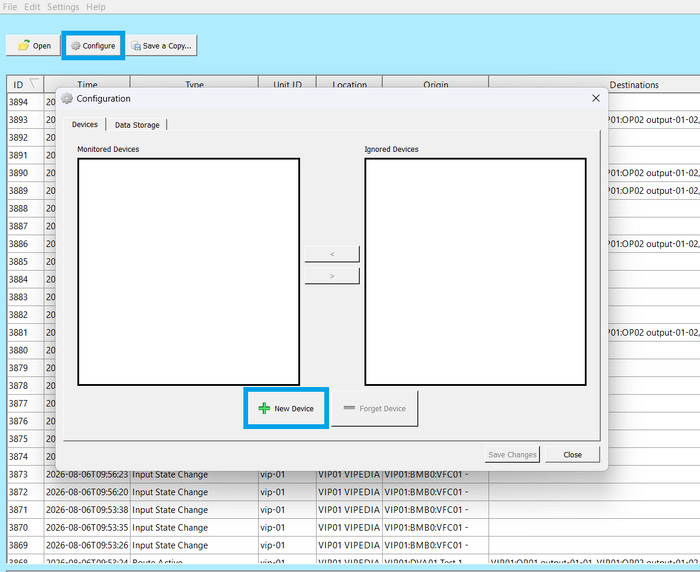

1.Click Configure > New Device

Adding new device/devices to Event Viewer

2. Export the VIPA Configuration from the SCT Tool

• If you do not have a separate VIPA .cfg configuration file already, you can extract one from the SCT:
• Open the SCT and select File > Export VIPA configuration and save the .cfg file to a known location on you host PC.

Exporting The VIPA Configuration

3. Click "Browse to PAVA VIPA config file" to understand how to extract the VIPA configuration from the SCT please refer to the NetworkCardManager page.

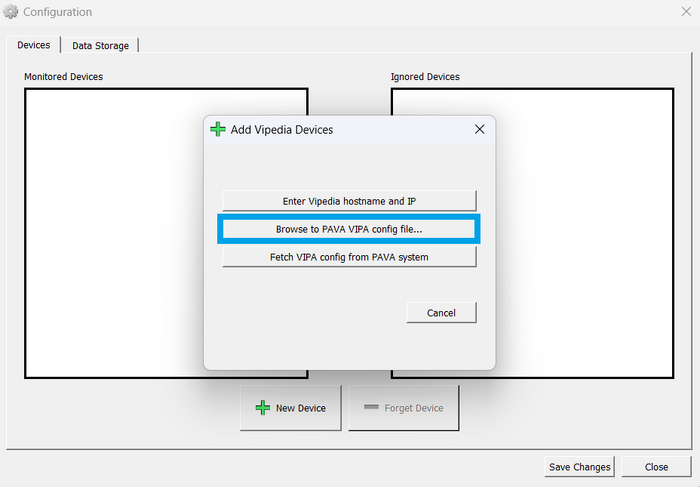

Clicking "Browse to PAVA VIPA config file"

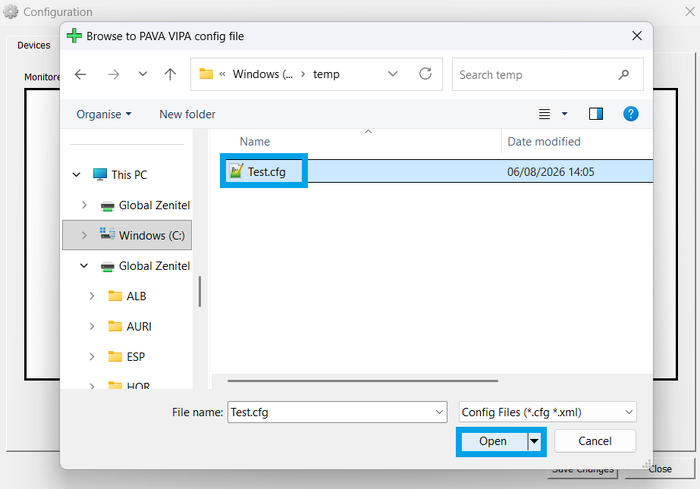

4.Select the extracted VIPA configuration > Open

Opening VIPA Configuration in Event Viewer

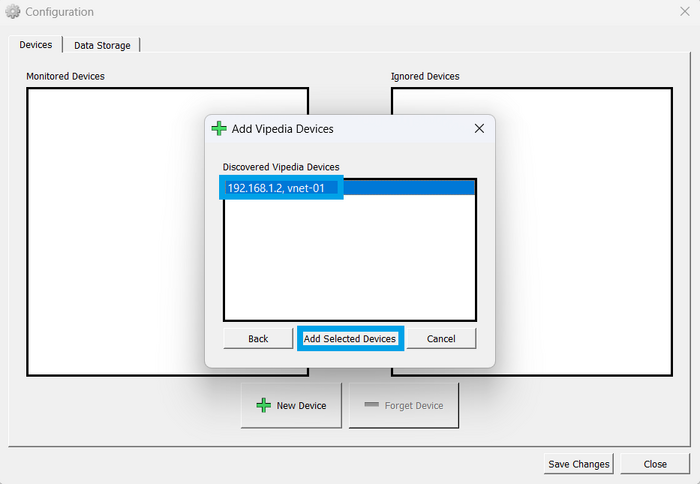

5. Click on the device/devices you wish to monitor > Add Selected Devices

Adding selected device/devices

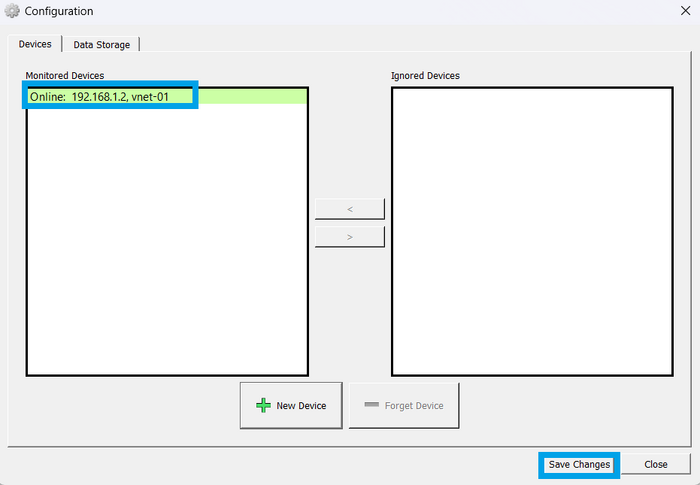

6. Upon successful connection to the device/devices, they should say Online: and highlight green under "Monitored Devices" > Save Changes

Entering IP address and hostname of device/devices to be monitored

7. Once the changes have been saved, you should be able to close the Configuration window and Event Viewer should begin monitoring the device/devices.
