IP Dummy Station

From Zenitel Wiki


An IP Dummy Station is a station that is configured to play a certain role in an application. It expands on the Virtual Dummy Station in that it can handle more than just Mail events.
The IP Dummy is a registered device that reacts as if there is an Intercom connected, and therefore consumes an IP License, but is also available to High Level Interfaces using OPC or SDK.
An IP Dummy can be used for several applications, such as Streaming Audio across the Network, or using Virtual Extensions.

OBS icon This feature requires an IP Station License for ICX-AlphaCom or AlphaCom

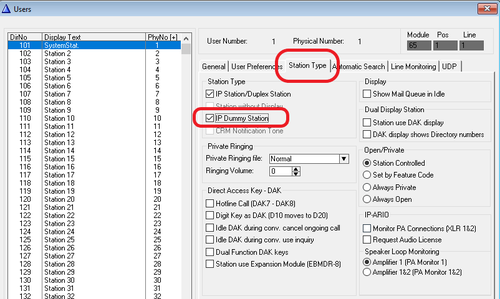

To configure an IP Dummy Station, select the desired Directory Number and select the IP Dummy Station flag from the Station Type tab.

IP Dummy Station


To configure the Network Stream parameters, we use the VOIP_AUDIO_CONFIG command.


Two IP Dummy stations can be linked together using the $VAC:

$VAC triggered at startup to link two IP Dummies together


Action commands:

$VAC L105 U8 '10.9.14.80' W4002 W4004
$VAC L106 U8 '10.9.14.80' W4004 W4002


UDP ports 4002 and 4004 must be added and applied to the ICX firewall; Filters

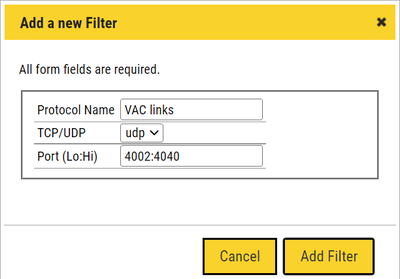

Add UDP ports 4002-4040 in filtersettings


Related Article: Virtual Dummy Station
