ITS-1 (Edge)

This article describes how to set up the ITS-1 unit in an IC-EDGE System.

Licensing

No license is required for the ITS-1, as long as the total number of Zenitel devices in the system is 32 or less. For devices above 32 an Intercom Extension license (1009661001) is required.

Edge Controller configuration

You need to manually add the ITS-1 to the Edge Controller.

Log on to the Edge Controller
From the menu Edge Controller > System Configuration > Directory, under the Manually Added Devices section, press the "+" button
Select Zenitel Device from the dropdown list
Modify Number and Name as required
Optionally one can add a SIP Password. If a password is entered, one have to manually enter the same password in the SIP Authentication Password field in the ITSV-5 unit. The password is used as authentication during the registration process.
Press Save to store the new device in the Edge Controller

Basic Configuration of the ITS-1

Network settings

Power up the ITS-1 unit
Push on the touch screen, and select Settings > Network status and make a note of the IP address.
Open a web browser on your computer, enter the IP address into the address bar (e.g. "http://192.168.0.160" or "192.168.0.160") and click Enter.
Enter the user name (default: admin) and password (default: alphaadmin) in the pop-up dialogue box and click Login
The very first time you log in you are prompted to change the password.

Make sure to make a note of the new password!

6. Select Network Settings > Ethernet Settings to configure the phone to use DHCP (obtain an IP address automatically) or Static IP address.

SIP account

Select Account > Account 1 > General Settings tab
Account active: Enable
Account name: Is shown in the LCD screen to identify the account
SIP Server: Enter the IP address of the Edge Controller
SIP User ID: Must match the number entered in the Edge Controller
SIP Authentication ID: This ID is identical to the "SIP User ID"
SIP Authentication Password (Optionally). If a password is entered, one have to enter the same password in the SIP Password field of the Edge Controller. The password is used as authentication during the registration process.
Display Name: This text is shown as Caller ID when placing a call
Press Save, then Apply to activate the settings

Video from a Zenitel Video Intercom

The ITS-1 will by default show video from a Zenitel Video Intercom (e.g. TCIV+, ZSD or ZDD) when a call is established. No configuration is required. However, there are some optional settings:

Preview of video

Auto Preview
There are options to preview video during the ringing of an incoming call. Log on to the web interface of the ITS-1, and select Account > Call Settings tab > Auto Preview:

No: The video from the caller is shown when the call is established. (Default)
Yes: The video from the caller is shown during ringing, and audio from the caller is heard. It is still ringing at the caller side until the call is answered.
Yes with Ringing: The video from the caller is shown during ringing, but audio from the caller is not heard.

Door Opening feature

During a conversation with a Zenitel Door Intercom, the door unit’s integrated relay can be activated by opening the keypad and pressing the digit “6”. Since Zenitel Door Intercoms are, by default, configured to trigger the door‑opening relay on DTMF “6”, no additional setup or programming is required to use the Door Opening feature.

If there is a need to restrict which stations should be allowed to do Door Opening, this can be configured via Device Profiles.

See Relay Settings to modify the relay operation if required.

Adding a Door Opening icon

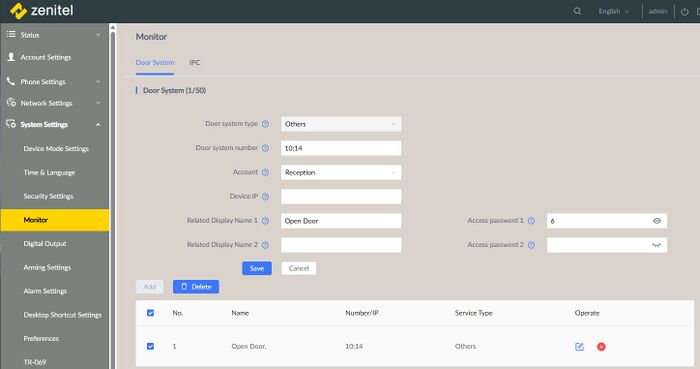

For a more user‑friendly interface, you can add a door‑opening icon to the display. This allows users to activate the door‑opening relay with a single press, instead of having to open the keypad and dialing a DTMF digit. To configure this, open the web interface of the ITS‑1 and navigate to: System Settings → Monitor

Click Add to create a new Door System, then fill in the following fields:

Door system type: Others
Door system number: Enter the directory number of the door intercom. Multiple numbers can be added, separated by ";" (e.g. 10;14;16).
Account: Select the activate account, typically account 1.
Device IP: Can be left blank
Related Display Name 1: The text below the door open icon.
Access password 1: The DTMF digit for door opening, normally "6".

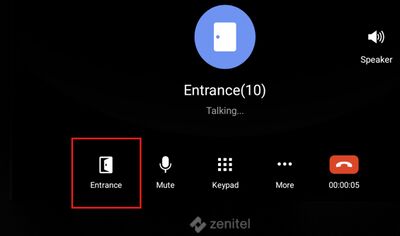

Configuring ITS-1 to display Door Opening icon during a call

Door Opening icon during a call
