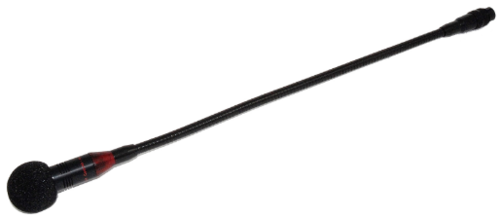

MB-30G
From Zenitel Wiki
Highlights
- Electret Microphone, 2K ohm
- 5-pin DIN plug
- For use in Public Address and Talk-Back Systems
- Length: 446 mm
Installation
Insert the 5-pin DIN plug on the gooseneck microphone in the microphone connector socket on the ECPIR panel.
Configuration
The default configuration of the ECPIR panel supports the gooseneck microphone, no additional configuration is required.

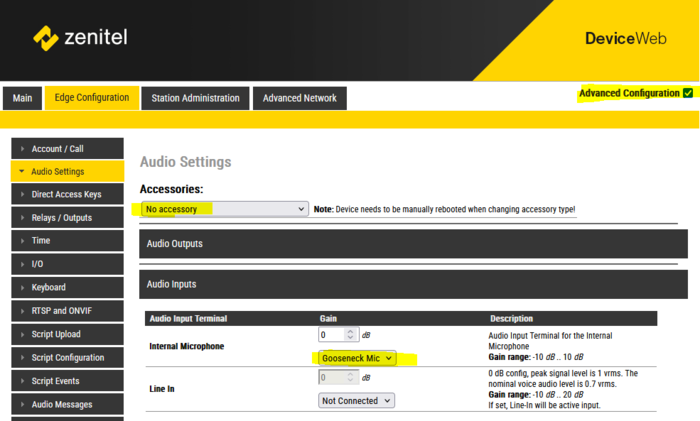

Configuration can be verified in the web interface of the ECPIR panel:
- Log in to the station web interface
- Enable Advanced Configuration
- Navigate to Audio Settings. Make sure "No accessory" is selected.
- In the section Audio Inputs the Internal Microphone should be "Gooseneck Mic".

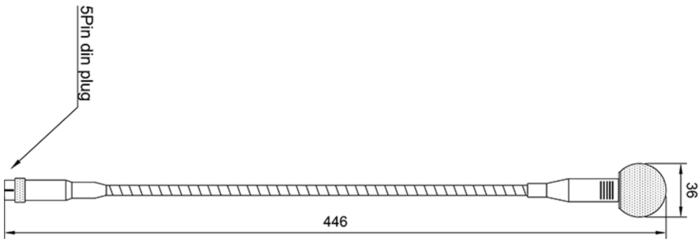

Dimensions
