RDT Surveillance Tones Configuration

Configuring Router Input Surveillance

Navigate to Input settings.

The default settings for configuring Input surveillance are as follows:

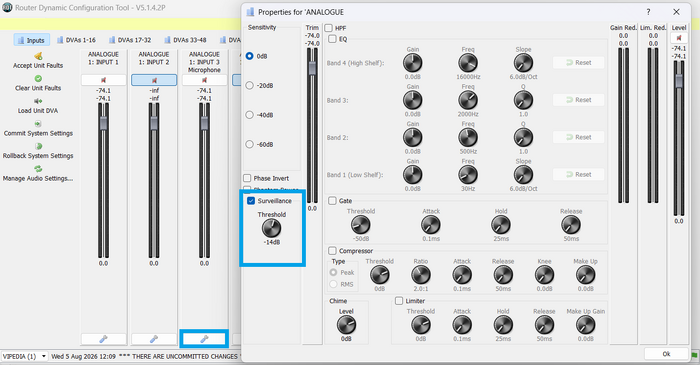

Click the properties icon, of the required audio input, highlighted as a spanner.
Click the Surveillance tick box to enable Surveillance.
Select a -14hz threshold (this is because Zenitel PAVA Microphones emit a frequency of 20Hz, which equates to -10dB on the audio input, so we use -14dB threshold for extra leeway).
Once all necessary inputs have been commissioned, click ‘Commit System Settings’.
This will permanently save the commissioned values into all VIPEDIA-12s.

Configuring Input Surveillance via the RDT

Navigate to global settings and configure surveillance tone frequency as your requirements.

The default settings for configuring output surveillance from the Vipedia 12 outputs to a V2000 are as follows:

Under ‘Surveillance Generator 1’ select ‘20Hz’.
For each V2000 connected output, enable the surveillance tone generation by selecting ‘On’.
Set the Send Level of each of these outputs to -30dB.
Figure 5 highlights the relevant sections, with outputs 1 – 12 commissioned as an example.
Repeat for all VIPEDIA-12 outputs in the PAVA system that have connection to V2000.
Once all VIPEDIA-12s have been commissioned, click ‘Commit System Settings’.
This will permanently save the commissioned values into all Vipedia-12s.

Configuring Output Surveillance via the RDT

To check you have configured the Router Output surveillance correctly, you can check the Analogue IP (mV) level in the ADT.
