ADT Tool
The ADT enables configuration of the V2000 amplifier mainframe and associated amplifier/loudspeaker line surveillance.

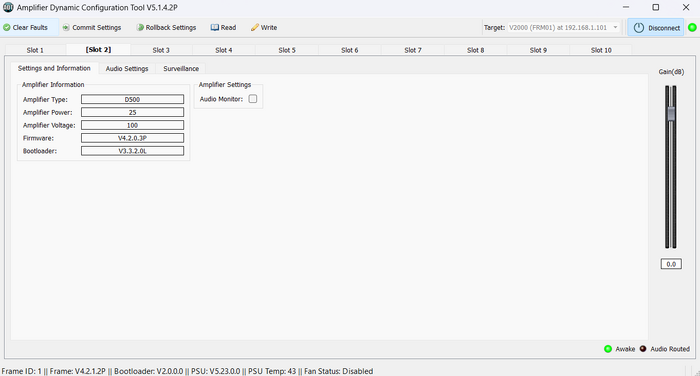

ADT Features
| ADT Features |
Purpose |
| Connect/Disconnect and LED Status |
Connect/Disconnect to the V2000:
- LED will show Green for a successful connection
- LED will flash amber and then default back to red in the event of an unsuccessful connection
|
| Target |
If there are multiple V2000s within your cluster, the target option will allow you to select to them individually |
| Clear Faults |
Clear any faults present within PAVA Cluster |
| Commit Settings |
Save any changed parameters within the ADT to the V2000 |
| Rollback Settings |
Rollback ADT parameters to their previous states |
| Read |
Read and copy an Amplifier Dynamic config, which is outputted as a .xml file |
| Write |
Write an .xml Amplifier Dynamic config to the V2000 |
| Slots 1-10 |
View slot information |
| Settings and Information |
View slot parameters such as:
- Type of Amplifier: D500 or D150.
- Amplifier Power: Set according to loudspeaker tapping requirements, measured in Watts
- Amplifier Voltage: Voltage of the loudspeaker circuit.
- Firmware: Current firmware version of the slot.
- Bootloader: Current bootloader version of the slot.
|
| Audio Settings |
Set certain audio parameters |
| Surveillance |
Commission certain surveillance parameters such as:
- EOL Surveillance
- Slot Input Surveillance
- Earth Leakage detection
|
| Gain |
Adjust audio Gain |
| Frame ID |
ID of V2000 |
| Frame:Vx.x.x |
Frame Controller version |
| Bootloader:Vx.x.x |
Frame Bootloader version |
| PSU:Vx.x.x |
Power Supply version |
| PSU Temp |
Temperature of PSU |
| Fan Status |
Enabled when V2000 fan is on and Disabled when off |
|
If any changes are made to the V2000 Dynamic Configuration, Please ensure to Commit Settings otherwise changes will be lost.
|
Connecting to the V2000 with the ADT

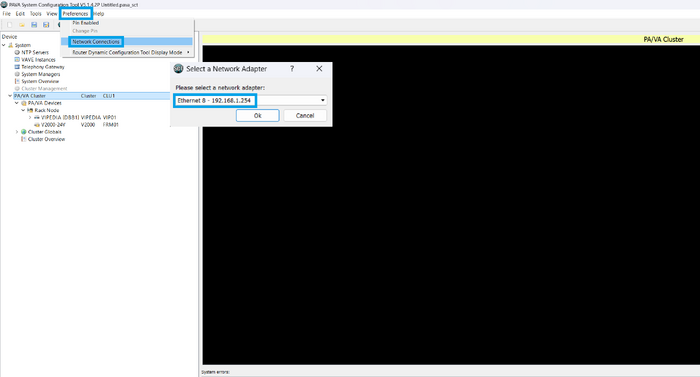

- Ensure your preferences are set to the correct laptop adapter which is on the same network as the V2000:
 |
| Selecting Correct Ethernet Adapter |

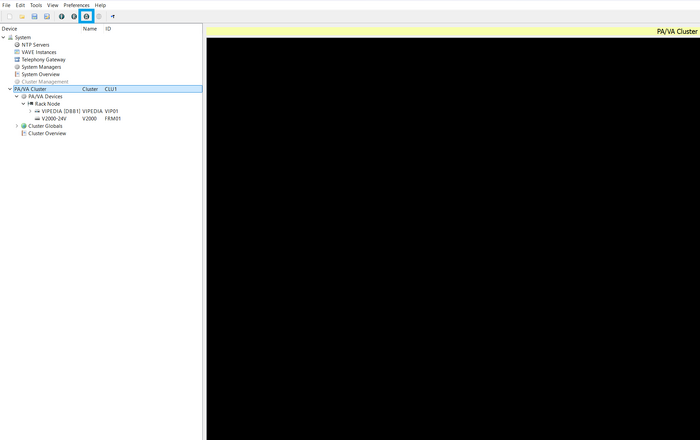

- Select the ADT tool highlighted as an A Icon.
 |
| Opening the ADT |
- Ensure you have the correct V2000 selected in the Target window and select Connect. You should see a green LED upon successful connection.
|
| Successful V2000 Connection in ADT |
