System Information (Zenitel Connect)
From Zenitel Wiki
The tile System Information in the System section provides information and status of the system and the devices. There are three main selections:
- Zenitel Connect
- Devices
- Calls
 |
| System Information page |
Status indicators
The top banner of the Zenitel Connect web interface displays key system status information at a glance. The warning icon indicates the number of active faults currently detected in the system, while the device icon indicates the number of devices with active issues. Selecting either icon opens a detailed view of the corresponding events.
 |
| Example showing 4 active faults and 1 device with an active issue. |
Zenitel Connect information
General Info
Shows the software version, as well as system information fetched from the license file.
Container Status
Health status of the different containers which make up the complete Zenitel Connect Pro software package.
Open Source licenses
Provides a list of all open source licenses of open source software which is used by Zenitel Connect Pro.
Devices information
Provides an overview of the status of devices. In the Device Status page one can view All devices, or only devices with Issues.
 |
| Device status |
The Operational Status of a device indicates if a device is operational or not, i.e. if the device is able to make and receive calls. See Device Status for more details.
By clicking on the radio button to the left of a device, more details will be displayed on that particular device:
 |

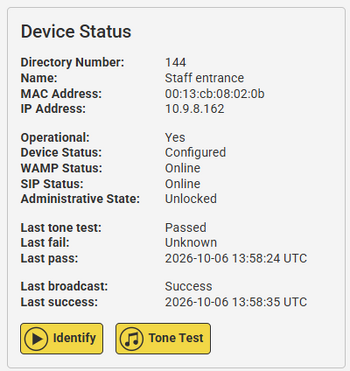

| Detailed device status for station number 144 |
Buttons:
- Identify: Will play a tone in the loudspeaker for a few seconds, making it possible to identify the location of the device.
- Tone Test: Verify that the loudspeaker and microphone is fully functional by playing a test tone in the loudspeaker which is picked up by the microphone.
- Button Test: Verify that the call button is fully operational. Applicable to the Vandal Resistant intercom - VR3G-1P only.
Calls information
Shows the number of active calls and broadcasts in the system.
If you need to reboot the system it is good practice the check that there are no active calls before rebooting.
 |
| Call status: Currently two active calls |
