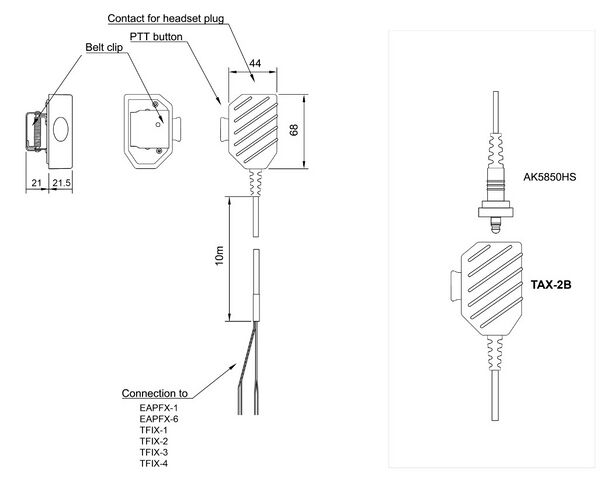

TAX-2B: Plugbox with 10 meter cable

TAX-2b is an Ex-Approved Plugbox & Cable for Headset with PTT.

Highlights

  • 10m cable for EX-areas
  • Compact, rugged plugbox with PTT for Industrial application
  • IP Rating: IP66
  • For use with Headset - AK5850HS
  • Designed for Exigo & Turbine EX explosion-proof intercoms

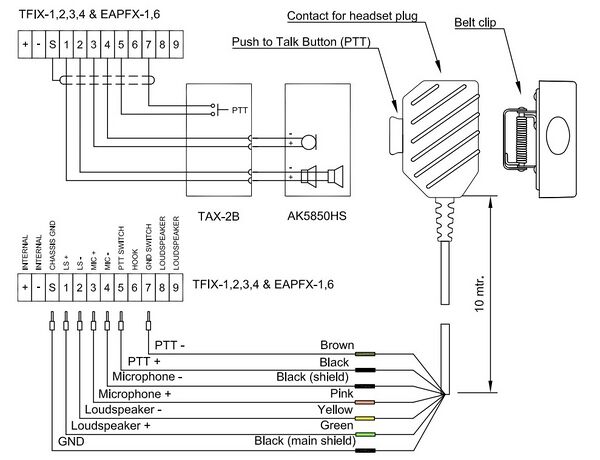

Connecting TAX-2b Plugbox to TFIX series Intercoms

Connect the wire ferrules on the Plugbox cable to the terminal block according to the pin configuration below. Note that the black (shield) wire is labeled MIC- and the black (main shield) wire is labeled GND.

Connecting TAX-2b Plugbox to TFIX series Intercoms



Connecting TAX-2b Plugbox to TFIX-V2 series Intercoms

Connect the wire ferrules on the Plugbox cable to the connectors according to the pin configuration below. Note that the black (shield) wire is labeled MIC- and the black (main shield) wire is labeled GND.

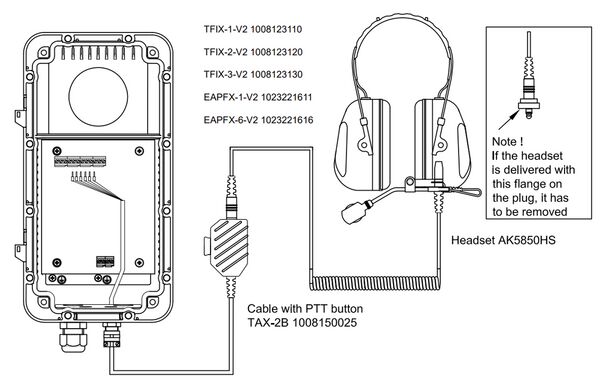

Connection of Headset AK5850HS and Plugbox TAX-2B on TFIX-V2
