Turbine Compact series board connectors

From Zenitel Wiki

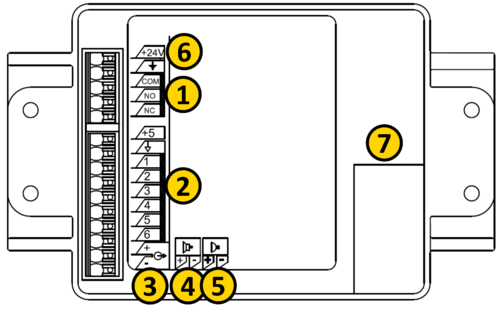

Item Description Comment
Relay Double Throw (SPDT) relay contact with 60W switching power. Max: 250VAC/220VDC, 2A, 60W
I/O interface 6 general purpose I/Os. Each I/O can be configured either as an input or 12mA LED driver output
Line Output Balanced 600 ohm audio line out. Suitable for external induction loop amplifier, PA amplifiers etc
Speaker Output Connection for 8 ohm loudspeaker (50 ohm on TMIS-x)
Microphone Input Electret mic input
Power Input Optional 24VDC/0.5A power input from external power supply (if PoE is not provided)
7 LAN Port 10/100Mbps RJ-45 port for Ethernet connection.
Note icon

¹) Connectable conductors: 0.20 - 1.5 mm² (IEC) / 24 - 16 AWG (UL). Use of ferrules is recommended. Max cable size is then 0.75 mm².

Note icon
  • Relay switching capacity: Max. 60 watt (Max voltage: 250VAC/220VDC. Max current: 2A)
  • The 5,3V output can deliver 200mA current maximum

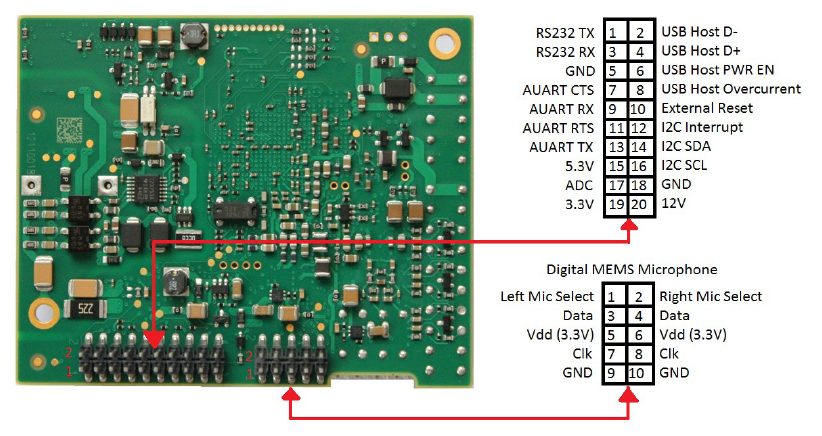

Rear side


Using an output to control a relay:


Most general purpose P-Channel MOSFET's should work. Recommended example: BSS84

See also Adding additional relay(s) to a Zenitel IP Device

Front Board (A100C08129)

Note icon Not applicable to TKIS-2 and TMIS-x


TCIS Connections 10.PNG


TCIS Connections 11.PNG
