ZIPS - Board Connections
From Zenitel Wiki
This article is applicable to ZIPS devices:
- The ZIPS IP speaker range and
- The ZIPS-kits (ZIPS-K and ZIPS-KOE).

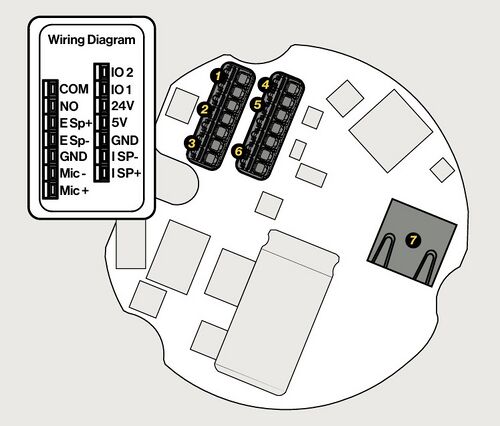

Circuit Board - Generation 2
| Item | Description | Comment |
| 1¹ | Relay | COM+NO, 48V nominal, max: 100VDC, 70VAC |
| 2¹ | External Speaker | Connection for 8 ohm loudspeaker. |
| 3¹ | Microphone | Electret mic input |
| 4¹ | I/O interface | 2 general purpose I/Os. Each I/O can be configured either as an input or 12mA LED driver output. |
| 5¹ | Auxiliary output | 24 VDC output for external beacon control |
| 6¹ | Internal Speaker | Connection for 8 ohm loudspeaker. |
| 7 | LAN Port | 10/100Mbps RJ-45 port for Ethernet connection. PoE is supported. |
|
¹) Connectable conductors: 0.20 - 1.5 mm² (IEC) / 24 - 16 AWG (UL). Use of ferrules is recommended. Max cable size is then 0.75 mm². |
|
|
Combined output power from internal/external speaker and 24VDC beacon driver cannot exceed continuous/peak 7,5W/30W |

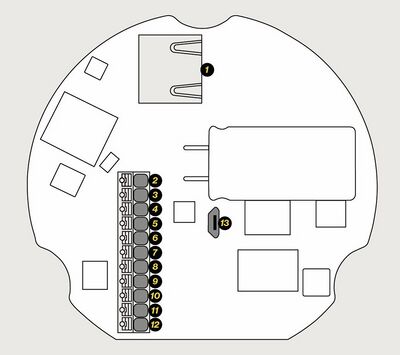

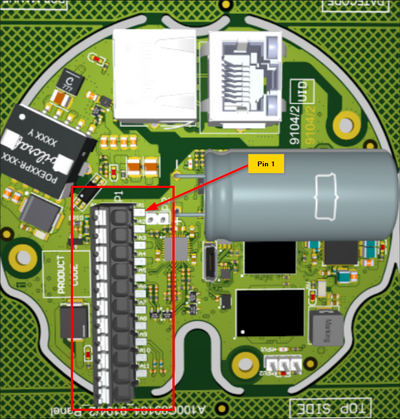

Circuit Board - Generation 1
| Pin | Description | Comment |
| 1 | RJ45 | Ethernet |
| 2 | GPIO | General Purpose In Out |
| 3 | 5V+ | 5 volt output |
| 4 | Ext speaker (8ohm) | Connection for external 8 ohm loudspeaker |
| 5 | Ext speaker (8ohm) | Connection for external 8 ohm loudspeaker |
| 6 | Int speaker (8ohm) | Connection for internal 8 ohm loudspeaker |
| 7 | Int speaker (8ohm) | Connection for internal 8 ohm loudspeaker |
| 8 | Relay CO | Relay output, Common |
| 9 | Relay NO | Relay output, Normal Open |
| 10 | Line in/Mic | Audio input (positive) |
| 11 | Line in/Mic | Audio input (negative) |
| 12 | GND | Ground connector |
| 13 | USB | Micro USB |
|
|
Connectable conductors: 0.20 - 1.5 mm² (IEC) / 24 - 16 AWG (UL). Use of ferrules is recommended. Max cable size is then 0.75 mm². |
|
|
|
