IP Video Door Station - 1401110200

IP Video Station, item 1401110200

Camera Type: Axis

Highlights

• Robust housing with Aluminium frontplate
• IP65 protection to front
• PoE Powered from one IP network cable
• IP HD Video camera BY AXIS
• Relay output for remote control, e.g. doors, signal lamps and gates
• Button with bi-colour LED ring

Configuration

• IP Station Configuration
• CP Cam Configuration

Software upgrade

• Software Upgrade
• CP Cam upgrade

Reset to factory settings

• Factory Settings of Audio Module
• Factory Settings of Camera Module

Related articles

• Back box flush mount - 1401199101
• Back box on wall mount - 1401199111
• Protection Roof - 1401199121

Installation

• Default IP adresses:
  • Audio module: 169.254.1.100 (admin/alphaadmin)
  • Camera module: 169.254.1.101 (admin/1234)

See article: IP Station Installation

IP Station Configuration

See article: IP Station Configuration

Reset to factory settings

• Factory Settings of Audio Module: IP Station Restore Factory Defaults
• Factory Settings of Camera Module: #Axis Factory Reset

Software Upgrade

See article: INCA Station Software upgrade

Related articles

• Back box flush mount - 1401199101
• Back box on wall mount - 1401199111
• Protection Roof - 1401199121

Camera Configuration

Connect to the camera using a webbrowser on default IP address 169.254.1.101.

In the menu that appears, click System Settings, and you will be asked to login:

Username: admin
Password: 1234

It is recommended to use a static IP address for the camera:

Setting Static IP Address

From the Main Menu navigate to Video Stream:

Axis camera configuration

Axis Factory Reset

After a factory default, the Axis camera will get its IP address from a DHCP server.
If there is no DHCP server on the network, it will get the IP address 192.168.0.90.

To restore the factory settings, proceed as follows:

1. Disconnect the camera from the power supply and ethernet.

2. Remove the four screws securing the rear cover and remove it.

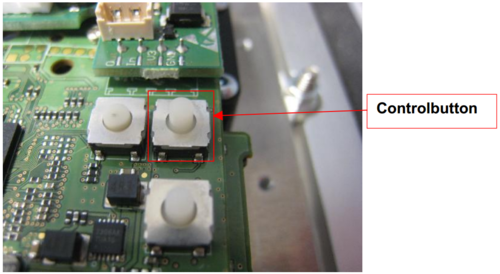

3. Keep the Control button pressed while you restore the power supply.

4. Hold down the button for about 15 seconds until the status LED is yellow flashing.

5. Release the Control Button. The process is complete when the status LEDs light up green.

If no DHCP server is active on your network the new default IP is 192.168.0.90.
The new default user is root with password pass
