Adding additional relay(s) to a Zenitel IP Device
From Zenitel Wiki
The Turbine Compact series has 6 I/O's which when set as outputs can be used together with the conventional Multi Relay Board (MRBD) to give up to 6 additional Normal Open or Closed contacts.
The 6 relays on the MRBD are double contacts.
Contents
Requirements
- The Turbine station must be produced no earlier than week 37 of 2012.
- The Turbine Station must have sw version TCIS-3.0.3.3 or newer.
MRBD Configuration

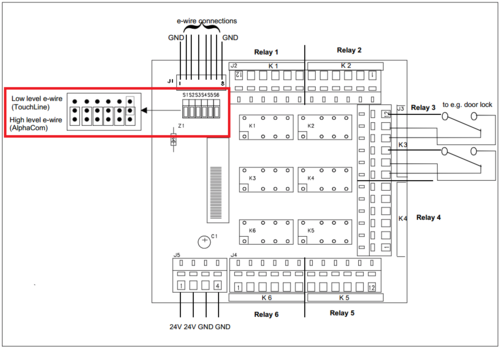

The MRBD has 6 jumpers (S1-S6) which allows to set the relays individually to be used for AlphaCom RCO or the older TouchLine method. Default the MRBD comes with the jumpers set for AlphaCom RCO usage.
When a relay is used with Turbine, the associated jumper must be set to "TouchLine"

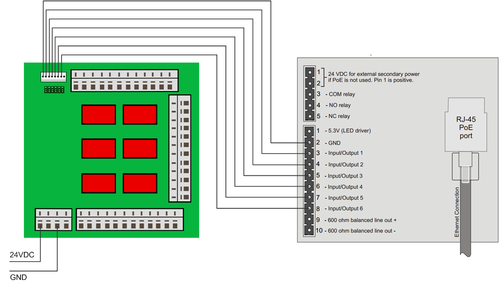

Connection
The MRBD need 24VDC to operate. This power can be retrieved from AlphaCom Audio Servers XE7, XE20 and XE26 (the latter with additional PDB).
- Connect the 0V from the Turbine Compact to the GND on the MRBD
- Connect the I/O('s) from the Turbine Compact to the Input(s) on the MRBD
Turbine Configuration
The Turbine is configured as normal to function with the AlphaCom. In addition the I/O's used with the MRBD must be set to Outputs.

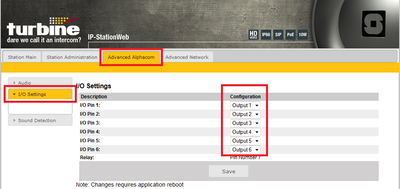

Log on to the Turbine station and navigate to Advanced AlphaCom -> I/O Settings.
Set the I/O('s) that are connected to the MRBD as Output.
