IP-ARIO Configuration

Main Settings

Settigs via the web interface

The IP-ARIO unit features an embedded web server, which allows users to log in via a standard web browser. At commissioning, the IP-ARIO unit needs to be configured to enable it to subscribe to an AlphaCom server/exchange. To do this, your PC and the IP-ARIO unit have to be connected together via a PoE switch using network cables:

Connect the PC to the PoE switch
Connect the LAN port on the IP-ARIO unit to the PoE switch

The factory default IP address of the IP-ARIO unit is 169.254.1.100. In order for your PC to communicate with the unit it is necessary to change its Internet Protocol Properties to use an IP address that is in the same range as 169.254.1.100, e.g. 169.254.1.1 with subnet mask 255.255.0.0.

After the IP properties have been changed, access the IP-ARIO unit by logging into the web interface using a standard web browser:

Open a web browser on your PC
In the browser’s address bar, type http://169.254.1.100 and press the ENTER key. The IP-ARIO login page is displayed.

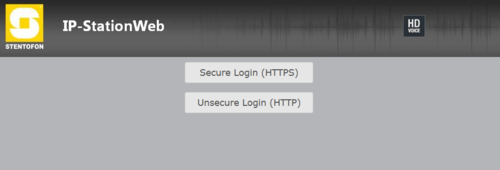

The IP-ARIO login page

Enter the default user name: admin
Enter the default password: alphaadmin

The Station Info page will now be displayed, showing the IP-ARIO unit configuration. Use the menu bar at the top of each page to browse through the various pages.

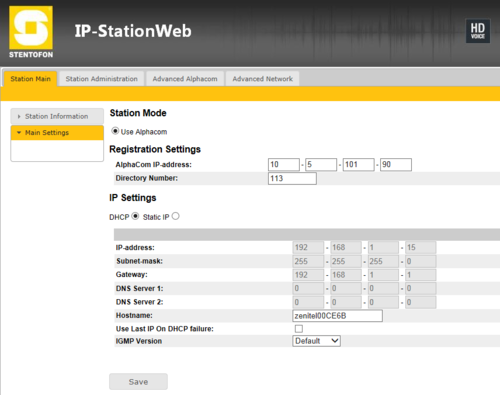

In Station Main -> Main Settings, set the following parameters:

AlphaCom IP-address: Enter the IP address of the AlphaCom server/exchange in which the IP-ARIO unit is to be registered
Request Directory Number: Enter the directory number of the IP-ARIO unit
- If a directory number is not entered, the IP-ARIO unit will register with its MAC address. The MAC address is found on the Station Info page and needs to be entered into the AlphaPro programming tool.

Under IP Settings, select one of the following options:

DHCP – Use this option if the IP-ARIO unit should receive IP Settings from a DHCP server.
Static IP – Use this option if the IP-ARIO unit should use a fixed IP address. Enter the IP address, subnet mask and gateway address.
Click Save followed by Apply to apply the new configuration settings.

IP settings in IP-ARIO

AlphaPro Settings

Open the AlphaPro programming tool on your PC and click the Users & Stations icon.

IP-ARIO must be configured as a CCoIP station:

Enter a Directory Number identical to the directory number entered in the IPARIO unit
Enter any descriptive Display Text
For Station Type, select Sub Station
Check the CCoIP Station box
Check the Reg. w/ Directory Number box

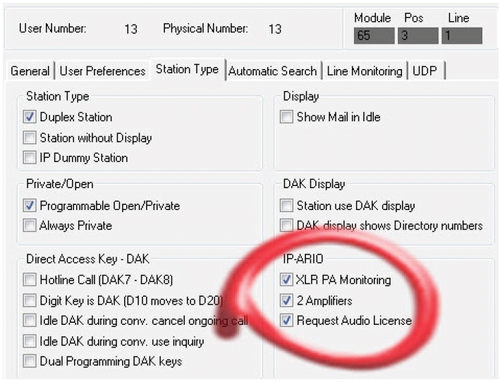

Configuring PA interface

In AlphaPro, Users & Stations, select the IP-ARIO from the list box, and click the Station Type tab. Under IP-ARIO, set the following flags:

Check the XLR PA Monitoring box
Check the 2 Amplifiers box
Check the Request Audio License box

Configuring Mobile Radio Interface

The IP-ARIO unit should be defined as Default Speaker in the Simplex Conference used for radio listening.

In AlphaPro, click the Simplex Conferences icon.

Select a Conference and click Change
Select the IP-ARIO as the Default Member
Enable Default Member is Default Speaker

Define IPARIO as Default Speaker in the conference

In the Users & Stations window, click the Station Type tab. Under IP-ARIO, set the following flag:

Check the Request Audio License box

See Mobile radio interface (IPARIO) for further details.

Configuring Inputs & Outputs

Remote Control Inputs & Outputs are configured under the Exchange & System menu.

For Remote Control Inputs:

Click RCI
Click Change to set RCI Type to Station
Enter the IP-ARIO Directory number in the Station Number field
Enter a Pin Number 1 to 8. Pin 1 is input 1, pin 2 is input 2 etc.

For Remote Control Outputs:

Click RCO
Click Change to set RCO Type to Station
Enter the IP-ARIO Directory number in the Station Number field
Enter a Pin Number 1 to 8. Pin number 1 is output 1, pin number 2 is output 2 etc.

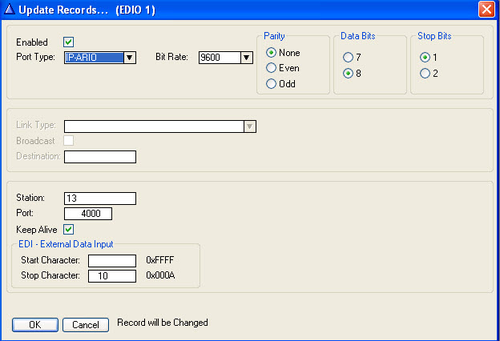

Configuring Remote Serial Port

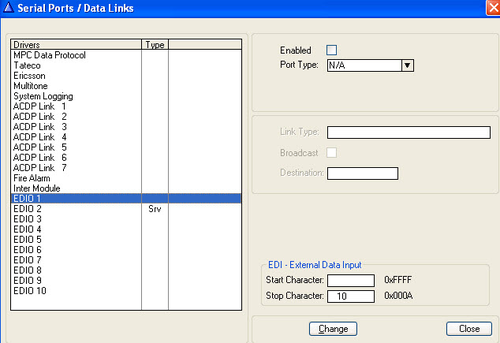

Click the Exchange & System icon and click Serial Ports.

Select one of the EDIO drivers and click Change

Check the Enabled box
Set Port Type to IP-PARIO
Enter the physical number of the unit in the Station field
Enter the port number in the Port field
- The port number (e.g. 4000) must be defined and opened under Filters in AlphaWeb
Click OK

When using the RS232 serial port of the IPARIO, the TCP port number used for the communication with the AlphaCom server must be added in the firewall of the AlphaCom. In AlphaWeb, select System Configuration > Filters.
Failing to do so will cause the IPARIO to reboot over and over again, trying to establish connection with the AlphaCom.

Local Status Monitoring

The Local Status Monitoring (LSM) feature can be started anytime after booting up the IP-ARIO unit. LSM will show the status on the following monitored items:

PA 1 and PA 2 for 20 kHz speaker monitoring
XLR 1 and XLR 2 for XLR connectors connection status
RCI 1 to RCI 8 showing active or non-active RCI inputs
RCO 1 to RCO 8 showing active or non-active RCO outputs

LSM is started by using a pin to press the pinhole Reset button located on the front-right of the unit. All LEDs at the front of the unit will be lit as long as the Reset button is pressed (as visual verification of the LED status). When the Reset button is released, LSM continues and the LEDs will show the following:

CALL LED fast flashing to indicate that the LSM feature is active.
STATUS LED indicates monitored group (3 groups)
- PA/XLR (green off, red off)
- RCI (green on, red off)
- RCO (green off, red on)
RADIO LED indicates monitored item within group, mix of LEDs on, off, slow and fast flashing.
ERROR LED indicates status of monitored item, on if fail or active, off if OK or non-active.

PA/XLR needs approximately 10 seconds to be updated if the status changes, i.e. if the XLR connector is disconnected and then reconnected.
RCI and RCO will show instant updating if the status changes, i.e. if RCI 1 changes status, this will be immediately indicated on the ERROR LED if RCI 1 is monitored.
Each time the Reset button is toggled, the status of the next LSM item is indicated on the ERROR LED.
The LSM can be terminated at any time by pressing and holding the Reset button for at least 2 seconds. LSM will auto-terminate 2 minutes after the last Reset button activity.
The table below shows the relation between the current status of the monitored item and the different LED indicators.

Local Status Monitoring
		Front LEDs
		CALL	STATUS		RADIO		ERROR
Toggle #	Monitored Item	Green	Color	Indication	Color	Indication	Red:ON	Red:OFF
0	PA 1	FAST	NONE	OFF	GREEN	ON	Fail	OK
1	PA 2	FAST	NONE	OFF	GREEN	SLOW	Fail	OK
2	XLR 1	FAST	NONE	OFF	RED	ON	Fail	OK
3	XLR 2	FAST	NONE	OFF	RED	SLOW	Fail	OK
4	RCI 1	FAST	GREEN	ON	GREEN	ON	Active	Non-ACTIVE
5	RCI 2	FAST	GREEN	ON	GREEN	SLOW	Active	Non-ACTIVE
6	RCI 3	FAST	GREEN	ON	GREEN	FAST	Active	Non-ACTIVE
7	RCI 4	FAST	GREEN	ON	RED	ON	Active	Non-ACTIVE
8	RCI 5	FAST	GREEN	ON	RED	SLOW	Active	Non-ACTIVE
9	RCI 6	FAST	GREEN	ON	RED	FAST	Active	Non-ACTIVE
10	RCI 7	FAST	GREEN	ON	YELLOW	ON	Active	Non-ACTIVE
11	RCI 8	FAST	GREEN	ON	YELLOW	SLOW	Active	Non-ACTIVE
12	RCO 1	FAST	RED	ON	GREEN	ON	Active	Non-ACTIVE
13	RCO 2	FAST	RED	ON	GREEN	SLOW	Active	Non-ACTIVE
14	RCO 3	FAST	RED	ON	GREEN	FAST	Active	Non-ACTIVE
15	RCO 4	FAST	RED	ON	RED	ON	Active	Non-ACTIVE
16	RCO 5	FAST	RED	ON	RED	SLOW	Active	Non-ACTIVE
17	RCO 6	FAST	RED	ON	RED	FAST	Active	Non-ACTIVE
18	RCO 7	FAST	RED	ON	YELLOW	ON	Active	Non-ACTIVE
19	RCO 8	FAST	RED	ON	YELLOW	SLOW	Active	Non-ACTIVE

SLOW means slow flashing at 500 ms on and 500 ms off.
FAST means fast flashing at 250 ms on and 250 ms off.
