Highlights
- Ex IP intercom for potentially explosive atmospheres - Directive 2014/34/EU
- Ethernet compatible 2-wire interface
- Dust- and water-protected to IP66
- ONVIF Compatible

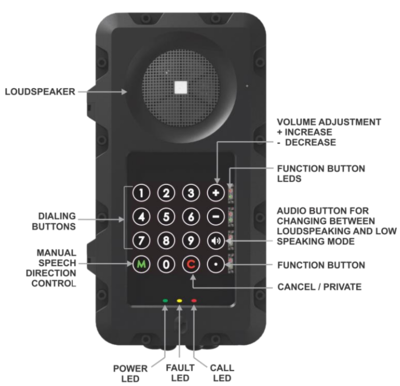

- Visible status indicators on front panel
- Input power supply 24V-48Vdc SELV approved (48Vdc recommended)
- Separate amplifier for external loudspeaker (25W/8ohm). 48Vdc input power needed.
- Signal relay for external beacon (SELV approved power supply needed)
- 2 freely programmable pot.free inputs
Getting started
Configuration
The station can operate in three different modes, depending on what kind of server the station should register to. Choose one of the links below according to what mode you need to configure.
Restore Factory Defaults and Software Upgrade
- Restore Factory Defaults
- Upgrade via the station web interface
- Upgrade using the IMT tool
- Automatic Software Upgrade (SIP mode only)
- FCDC-3 Software Upgrade Procedure
Connectors, Indicators and Dimensions
Accessories
Software Requirements
This station is fully supported as form AlphaCom version 11.2.3.11
