Overview

When integrating Vipedia PAVA and an ICX-500 system it can be useful to have an indication of the status of the PAVA in the control room. There is no indication of the amount of faults, multiple faults will aggregate into one indication. This article describes how to program this using stations that have DAK buttons with a programmable red LED indication.

Using two relays and two inputs on an IP-LCM wired to a BMB01 it is possible to do fault indication, fault accept and fault clear on a Vipedia from an operator station. Possible stations are the IP Flush Master or it's DAK-48 Module and ECPIR-3P or it's EBMDR-8. In this example we will use the 48th button on the DAK-48 panel.


The configuration in this article will give the following functionality:

  • Blinking red LED on the DAK button for unacknowledged faults
  • Pressing the DAK button acknowledges faults
  • Steady lit red LED on the DAK button for acknowledged faults
  • Dialing a 4 digit code clears the faults. This can only be done on stations with a keypad, so not the ECPIR-3P.

These four functions follow a typical workflow for handling faults.

Hardware

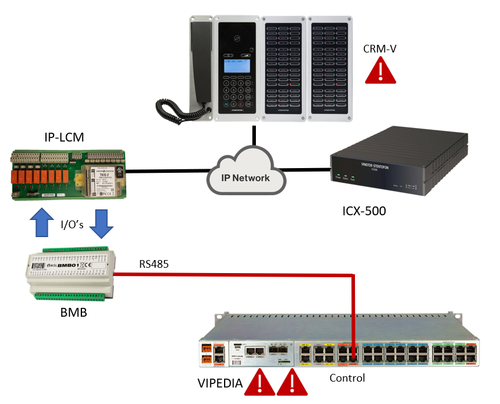

The wiring between the Vipedia and IP-LCM is described in the Integration with ASL PAVA using the IP-LCM unit article. The IP-LCM and CRM-V are registered to an ICX-500

Fault indication

On the BMB01 there are two outputs configured. One relay for unacknowledged faults and one for acknowledged faults.

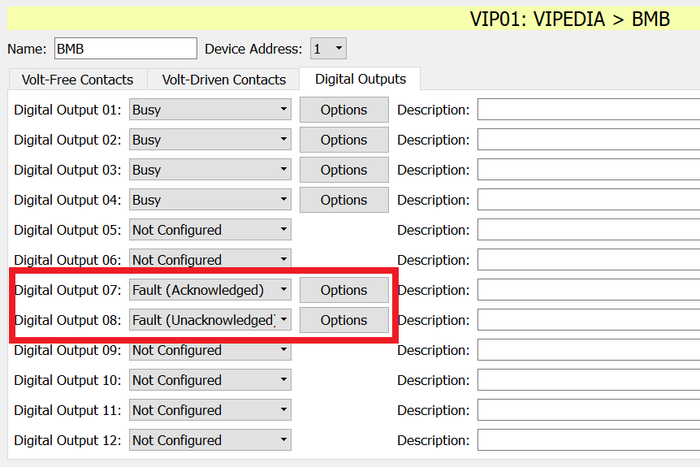

Fault outputs.png
Setting fault outputs

These two relays are connected to two inputs of the IP-LCM. In the ICX-500 we create an event for each to manipulate the red LED of the DAK button. In this example we use the last button on the DAK 48. The event of for the blinking LED:

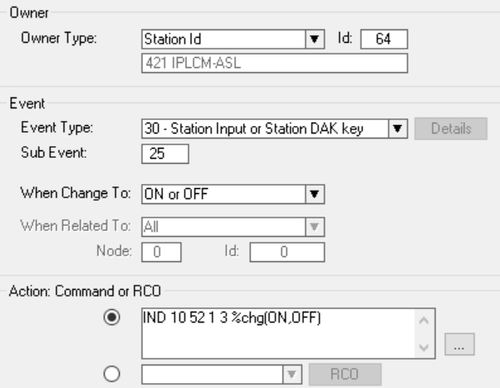

ASL unack.png
Indicating unacknowledged faults

Action commands:

IND 10 52 1 3 %chg(ON,OFF)


The event for the steady LED:

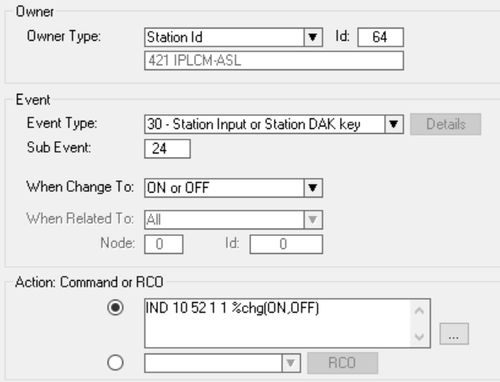

ASL ack.png
Indicating acknowledged faults

Action commands:

IND 10 52 1 1 %chg(ON,OFF)


Because the blinking has higher priority over steady lit in the IND command they can be layered in this way.

Fault accept

For accepting the faults we use the same DAK button on the CRM-V and relay 6 of the IP-LCM. This relay is wired into an input of the BMB.

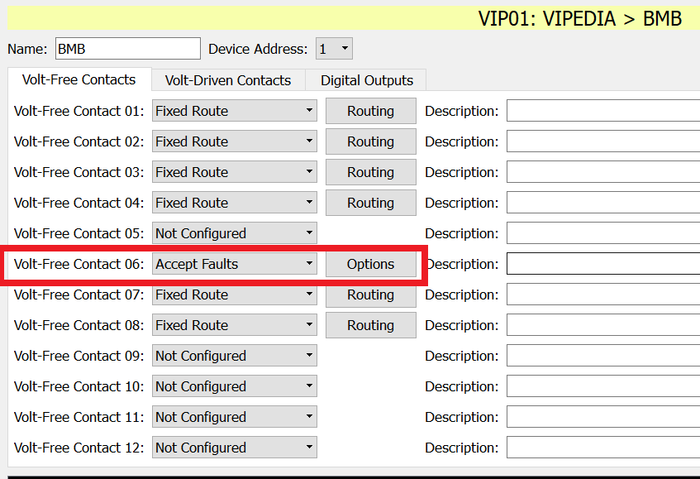

Fault accept contact.png
Setting fault accept input

In the ICX-500 an RCO has to be defined. We use RCO 8 in this example, linked to IP-LCM relay 6. After assigning RCO's the ICX-500 needs a small reset.

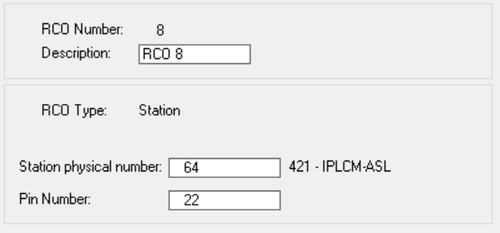

Fault accept RCO.png
RCO for Relay 6

And in an event tied to the DAK button on the CRM-V we pulse the relay for 2,5 seconds.

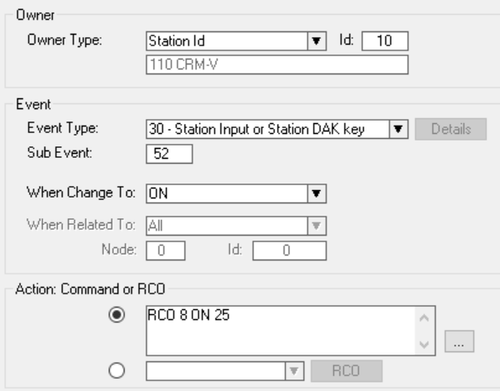

Accept event.png
Event for accepting fault

Action commands:

RCO 8 ON 25


Fault clear

Clearing a fault should of course be protected by a pin number just like on the front panel of the Vipedia. The configuration on the BMB01 is similar to the fault accept. For clearing the faults we use relay 5 of the IP-LCM. This relay is wired into an input of the BMB.

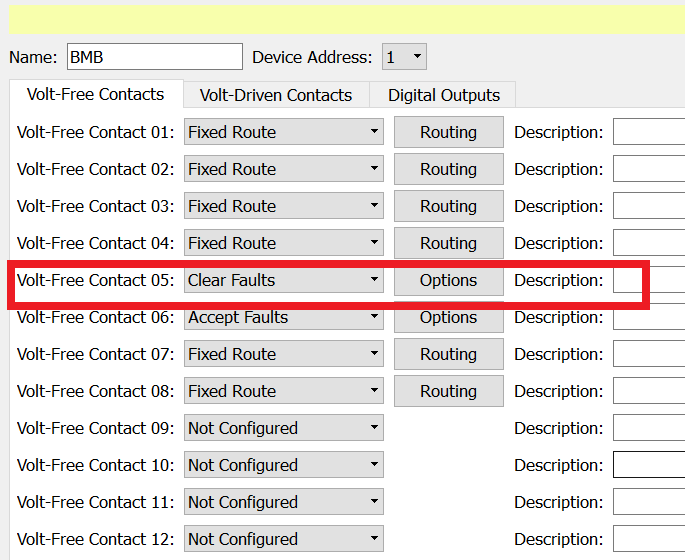

ASL fault clear.png
Setting fault clear input

In the ICX-500 an RCO has to be defined. We use RCO 7 in this example, linked to IP-LCM relay 5. After assigning RCO's the ICX-500 needs a small reset.

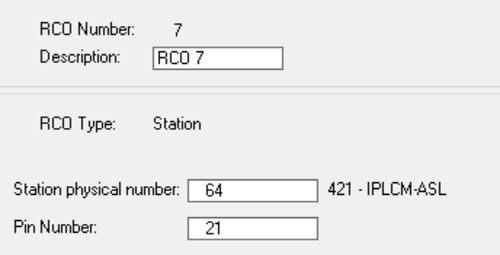

Fault clear RCO.png
RCO for Relay 5

Because we will use a 4 digit code we use an event trigger (feature 85). In the example we created one with number 6506.

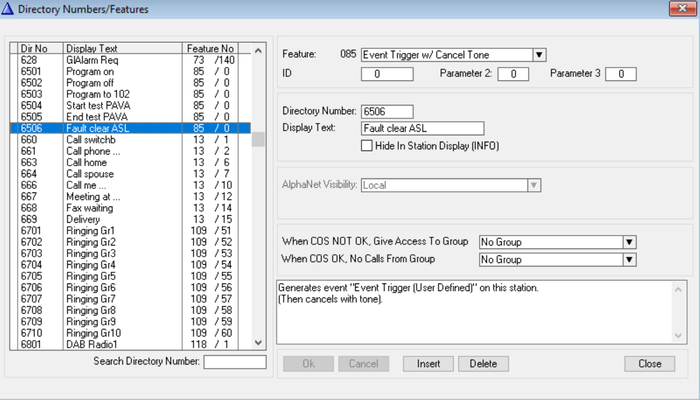

Event trigger feature.png
Event trigger feature

This feature will trigger an event 15 for the CRM-V, which we use to pulse the RCO we defined earlier.

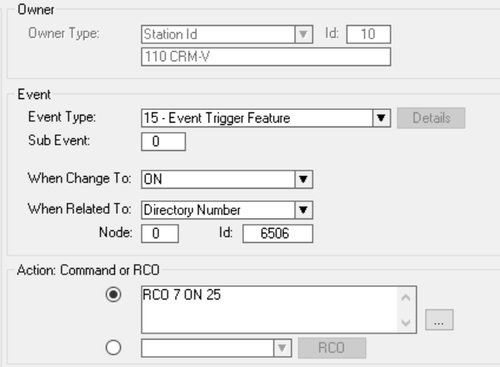

Clear event.png
Event for clearing fault

Action commands:

RCO 7 ON 25
