The RDT is launched from within the PAVA SCT tool and enables configuration and commissioning of the dynamic parameters associated with the Vipedia-12 audio router and its peripherals.
If there are multiple Vipedia-12 units within the SCT Cluster, This feature will allow you to select and configure them individually
Accept Unit Faults
Stops beeping in the prescence of faults within the cluster
Clear Unit Faults
Clears any faults currently present in the cluster
Load Unit DVA
Where DVA Messages are loaded onto the Vipedia
Commit System Settings
Save any changes made on the RDT
Rollback System Settings
Settings will be rolled back to previous state
Manage Audio Settings
Multiple settings within. These include:
Read .csv dynamic config from Vipedia
Write .csv dynamic config to the Vipedia
Reset the Dynamic settings to factory default

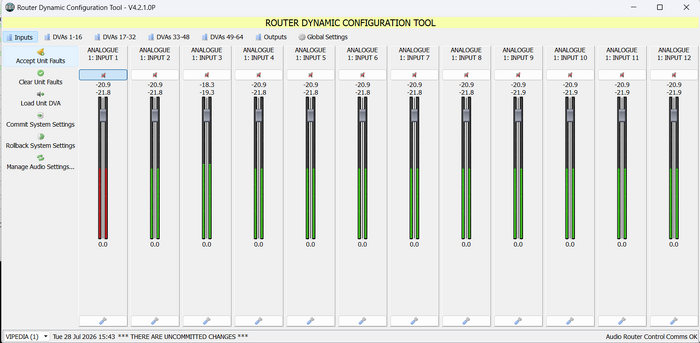

Inputs
Configure audio input parameters such as:
Muting input
Adjusting input dB level
DVA's 1-16, DVA's 33-48, DVA's 49-64
Configure the DVA parameters such as:
Muting certain DVA's
Adjusting DVA dB level
Outputs
Configure audio output parameters such as:
Output dB level
Muting certain outputs
Adjusting output dB level
Global Settings
Configuring Vipedia audio output surveillance
If any changes are made to the Router Dynamic Configuration, Please ensure to Commit System Settings otherwise changes will be lost.
Reading/Writing the Router Dynamic Config
To ensure dynamic configuration consistency in the event a Vipedia-12 router needs to be swapped out, it is possible to read the current router dynamic config. The resulting back up can then be written to a new Vipedia-12 if required.
Reading Router Dynamic Config
Ensure your preferences are set to the correct laptop adapter which is on the same network as the Vipedia-12:
Selecting Correct Ethernet Adapter
Click the RDT icon (highlighted with the R symbol) to open the RDT:
RDT Icon

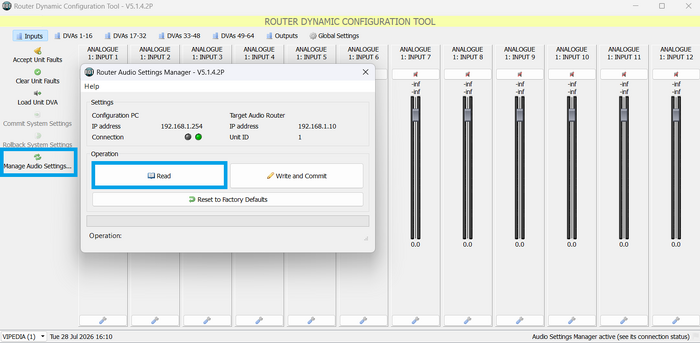

Click on Manage Audio Settings > Click Read and save the .csv file a known location.
Saving Router Dynamic Config
Writing Router Dynamic Config

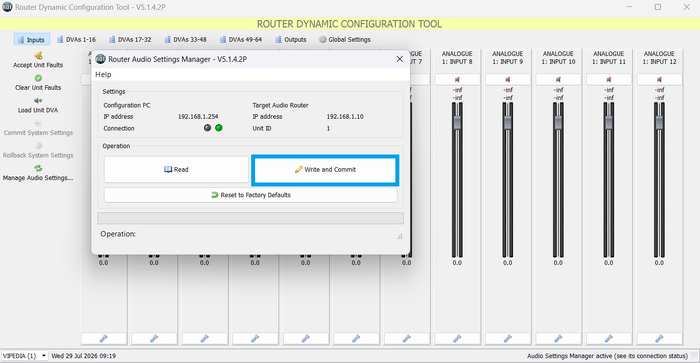

Select Write and Commit in the RDT
Writing and Committing the .csv file

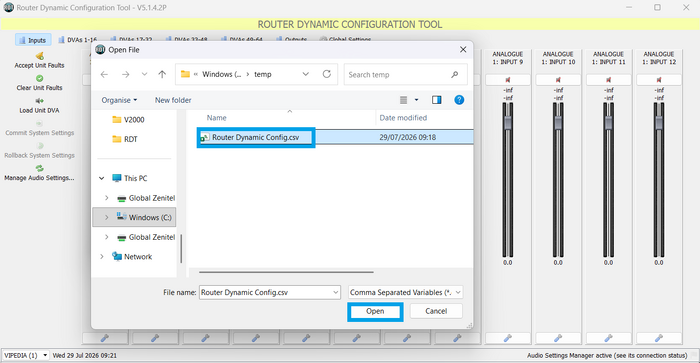

Select the .csv file
Click Open
Selecting the .csv file
Configuring Router Output Surveillance

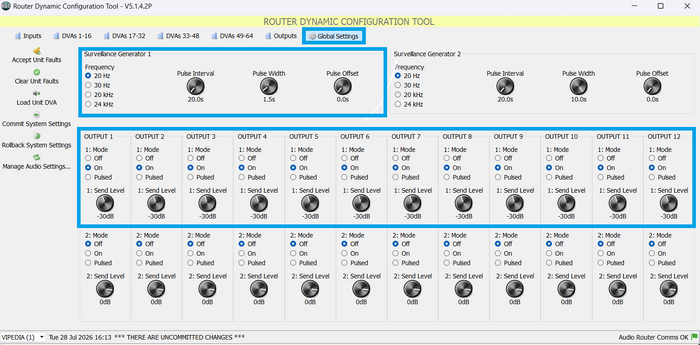

1. Navigate to global settings and configure surveillance tone frequency as your requirements.
The default settings for configuring output surveillance from the Vipedia 12 outputs to a V2000 are as follows:
Under ‘Surveillance Generator 1’ select ‘20Hz’.
For each V2000 connected output, enable the surveillance tone generation by selecting ‘On’.
Set the Send Level of each of these outputs to -30dB.
Figure 5 highlights the relevant sections, with outputs 1 – 12 commissioned as an example.
Repeat for all VIPEDIA-12 outputs in the PAVA system that have connection to V2000.
Once all VIPEDIA-12s have been commissioned, click ‘Commit System Settings’.
This will permanently save the commissioned values into all VIPEDIA-12s.
Configuring Output Surveillance via the RDT
To check you have configured the Router Output surveillance correctly, you can check the Analogue IP (mV) level in the ADT.
