Ringing Group Feature

The ringing group feature is based on call request to group.

Ringing Group feature

Description

Compared to the Call Request feature the Ringing Group system has the following differences:

If the caller terminate the call/hangs up, the ringing group call is automatically removed from all station within the ringing group.
Private ringing tone is used for stations receiving a ringing group call.
The caller can be answered from any member of the ringing group by "M-key" or "OFF HOOK"
The private ringing tone can individually be muted by pressing "C-key" at a station in the ringing group
The first caller in a queue for a ringing group is displayed in idle ringing group members station displays. (Mail in idle)
When a new call to a Ringing Group is made, notification of new priority mail is avoided.
The private ringing timeout time is by default 30 minutes. The timeout is controlled by the "Call Requester Reminder Time" timer.
Any number of stations can be member of a ringing group

Ringing tones

One can upload wav files to the ICX-AlphaCom server, and use customized ringing tone for different ringing groups. See Private Ringing, Customized ringing tone for details.

Calls from SIP trunk

In order to distinguish an internal call from an external SIP call, the AlphaCom is by default using UK style private ringing tone on a ringing group if the call originates from SIP Trunk.

Different types of ringing tones can be selected in AlphaPro, Exchange & System > System -> VoIP. One can also choose to use standard ringing tone for calls from external SIP Trunk.

Default directory numbers

AlphaCom factory default directory numbers 6701 to 6710 are predefined as Ringing Groups related to station groups 51 to 60.

6701 – Call stations in group 51
6702 – Call stations in group 52
!
!
6710 – Call stations in group 60

Call Forwarding

To forward a ringing group call to another ringing group, or to a telephone after a preconfigured time if no answer: See Forward unattended Ringing Group calls

AlphaNet Configuration

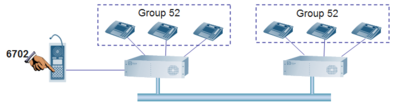

Ringing Group in AlphaNet

Ringing Group is by default a Global feature. The activation of a ringing group call is sent as broadcast to all nodes in AlphaNet. This implies that the same local (ringing) group number is activated in all nodes.

To manage failure situations the Ringing Group mail has a 30 seconds timeout. While the initiator of the ringing group is in call requester mode the mail timeout is globally updated every 10 seconds. This means that if the data communication to the initiator node fails the ringing group calls on remote nodes will be terminated withing 30 seconds. (For regular call request the timeout is 7.5 days)

No particular configuration is required for ringing group used in AlphaNet.

If global behaviour is not wanted, the feature can be turned off in AlphaPro, Exchange & System -> System -> Calls and Options -> "Ringing Group in Global Mode".

Events Trigged

Station Events

1-Audio - Private Ringing And Incoming Call

Audio
This events are trigged for stations in the ringing group when the group is called and private ringing tone is active.

ON/OFF will toggle with the ringing tone

%1 = station with private ringing
%2 = unavailable

11-Call Requester Mode

Call Requester Mode

ON Initiating Ringing Group Call.
OFF Call is canceled/answered

%1 = Initiator
%2 = Ringing group called. ("6701", "RingGroup 1")

Mail Events

Mail events will be trigged when ringing group calls is in the station queue.
(Mail Event will also trig on regular priority mail presence)

Note that SET_MAIL_TIMEOUT is not supported for Ringing Group.

6-Priority Mail Present

Priority Mail Present

ON when ringing group mail(s) are present in station queue.
OFF when no mails present.

%1 = station with mail present
%2 = unavailable

10-Received Mail

Received Mail

ON when a new ringing group mail arrives.
OFF when the caller is answered.

%1 = Ringing Group mail receiver.
%2 = Ringing group caller.

12-Priority Mail In Idle

Priority Mail in Idle

ON when ringing group mail(s) are present in station queue and station is idle.
OFF when no mails present or station busy.
