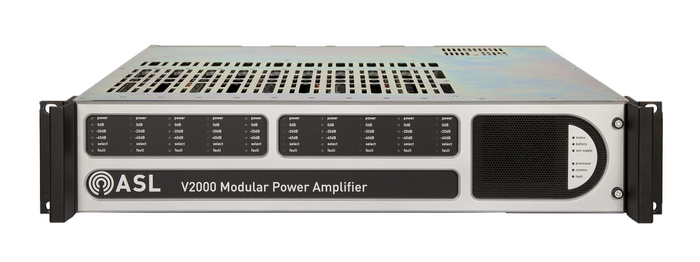

V2000

The V2000 is a compact and robust solution for Voice Alarm Amplification. This mainframe is specifically engineered to accommodate Zenitel's modular D-series amplifier and LSZDC interface cards. Controlled by Zenitel's VIPEDIA Audio Router, this 2U 19” rack-mount frame supports up to 2000W distributed across a maximum of 10 individual amplifier cards. Connectivity to the Audio router is facilitated through both ethernet for control/monitoring and copper hard-wired cables for line-level audio, which provides integrated fail-safe redundancy in case of frame processor failure.

For larger installations or those requiring extended availability, multiple V2000 units can be strategically deployed across separate PAVA nodes, offering interleaved circuits. Up to sixty-three V2000 frames can be hosted on a single VIPEDIA audio router, thereby ensuring considerable scalability and efficiency in system design.

The V2000 is designed for scalable, high-availability PAVA systems, supporting standby redundancy and installations of up to 63 frames per VIPEDIA Audio Router. With dual AC/DC power supplies, an integrated EN 54-4 compliant battery charger, and EN 54-16 certification, it provides reliable voice alarm amplification with comprehensive system and fault monitoring.
