An IC-Edge System can contain any IP Station from Zenitel

This article describes step by step how to configure an IC-EDGE System.

The IC-EDGE system is a SIP intercom system intended for small to mid-size installations for up to 64 IP stations. Up to 32 stations can be used without the need of a license. The IC-EDGE System is easy to install and configure. It is configured using a standard web browser (like Firefox or Chrome). Multiple IC-EDGE systems can be linked together.

One of the intercom stations must be set as the "Edge Controller". The Edge Controller is acting as a server for the other intercom stations in the system. Most Zenitel IP devices can act as an Edge Controller, see full list here.

Watch this video on how to get started with the IC-Edge system:


Software requirements

Hardware requirements

  • Edge Controller: Most Zenitel IP devices can act as an Edge Controller, see full list here.
  • Edge Client: All IP devices from Zenitel can be a client in an IC-EDGE system

License requirements

Some devices used in the IC-EDGE System require that a software license is installed. See Licensing in IC-EDGE for details.

Planning the IC-EDGE System

Before starting the configuration, it is recommeded to carefully plan the system. Configuration data, such as IP addresses, Names and Numbers should be documented. From the IC-EDGE System Planning page one can download a IC-EDGE System Planner template, which will assist you in collecting all neccerassy data before starting with the configuration.

Set Edge Controller

First step: Set the Edge Controller
  1. Decide which station to use as an Edge Controller, and connect that station to a PoE Ethernet switch. Do not connect any other stations at this point.
  2. Connect your laptop computer to the network switch
  3. Start a web browser (e.g. Firefox or Chrome), and log on to the station.
  4. In Main Settings, set "Mode" = Edge Controller. Enable Static IP, and enter the IP Address, Subnet Mask and the Gateway of the Edge Controller
  5. Press Save
Edge MainSettings2.PNG
Setting the Edge Controller
Note icon
  • The Edge Controller should always use a Static IP Address, not DHCP.
  • A valid Gateway address must be defined. If there is no gateway in the network, you can enter the same IP Address as the Static IP Address. A valid gateway address is important for the Group Call feature to function.

Set Directory

Note that all configuration is done at the Edge Controller, which will push configuration to the Edge devices. There is no need to log on to each individual device.

Second step: Connect the rest of the stations, and set Directory
  1. Connect the rest of the intercom stations to the network.
  2. Wait for the stations to boot up (approximately 60 seconds) before proceeding to the next step.
  3. Log on to the Edge Controller using its new IP address.
  4. Select Edge Controller > System Configuration > Directory. You should now see a list of all stations on the network.
  5. To identify the individual stations, click Play Tone. You will now hear a tone in the loudspeaker of the station you selected.
  6. Enter Number, Name and IP address for all the stations. You can choose to enter a Static IP address, or check DHCP to obtain IP address from a DHCP server. When using Static IP addresses, make sure to enter an unique IP Address for each station.
  7. Optionally one can add a SIP Password. If a password is entered, it will automatically be applied to the devices. The password is used for the registration proccess.
  8. Optionally one can change the Profile. Device Profiles are used if restrictions should be applied to Relay Activation (Door Opening), Group Call activation etc.
  9. If the Read IP Address is checked, the station will play its own IP address in the loudspeaker when the station is off-line, and a Call Button is pressed.
  10. Click Save. This will immediately push the settings to all stations.

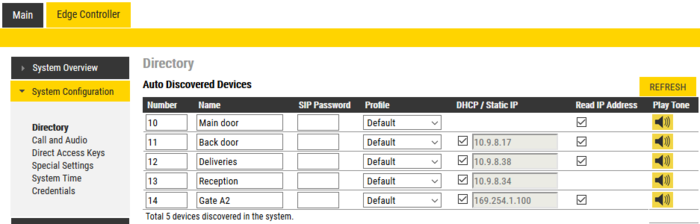

Edge Discovery.PNG
Configuring the Directory list

To verify that the devices are successfully registered to the Edge Controller, select Edge Controller > System Overview. The devices should now have the status Registered.

Note icon
  • Only devices on the same subnet as the Edge Controller will automatically be discovered. Devices on other subnets have to be added manually.
  • The ITSV-1 phone and 3rd party SIP phones must be added manually.
  • Beware of number masking, e.g. number 10 will mask numbers 100-109, 1000-1099 etc.''

The Edge system supports up to 32 intercom stations without the need of any license. The number of intercoms can be expanded to 64 by adding Intercom extension licenses. See Licensing in IC-EDGE for details.

Set Direct Access Keys

The Call Buttons (aka Direct Access Keys - DAK) are configured via the Edge Controller.

  • Log on to the Edge Controller, and select Edge Controller > System Configuration > Direct Access Keys

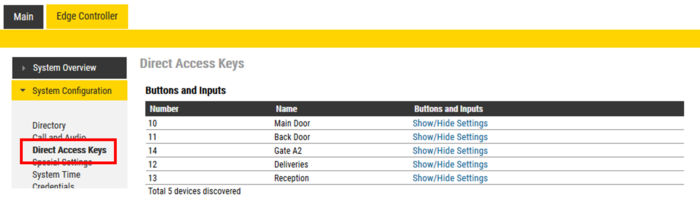

Edge DAK1.png
Direct Access Key settings
  • Select Show/Hide Settings for the station you want to configure
  • Enter the number you want the call button to dial, then Save:

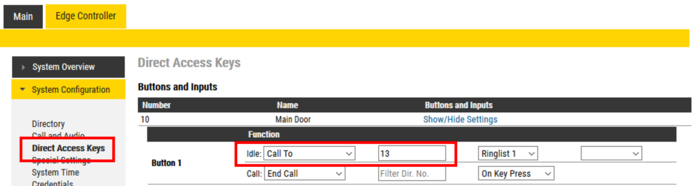

Edge DAK2.png
The Call Button of station 10 has been configured to call number 13
  • Continue with the next station until the call button of all stations are configured.

See Direct Access Key & Ringlist Settings (Edge) for more details on DAK and Ringlist configuration.

Set System Time

By setting the System Time, the Edge Controller may obtain the date and time from the NTP server, and upgrade all connected devices with correct time settings.

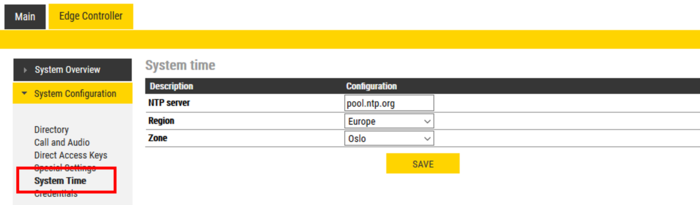

Edge SystemTime.png
System Time Settings
  • NTP Server: Defines the URL or IP address of the NTP server.
  • Region: Select which region in the world
  • Zone: Select local zone

When region/zone is selected, Daylight Savings time will automatically be adjusted according to the seleceted zone.

Set Credentials

The default credentials are User = admin, Password = alphaadmin. For security reasons it is recommended to change the default password.

  • From Edge Controller > System Configuration > Credentials, you can change the password on all connected devices in one operation
  • Enter the Old Password, the New Password, then confirm the new password
  • Upon Save, the new password will be pushed to all devices

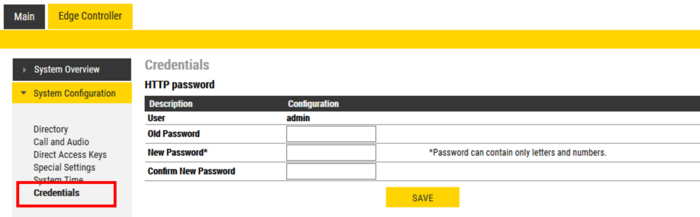

Edge Credentials.png
Changing credentials in the Edge System

Verify System Setup

Select Edge Controller > System Overview. All stations that have been configured should be displayed in the table. Stations that are up and running will have the status Registered.

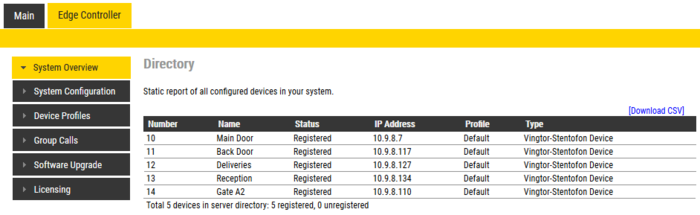

Edge SystemOverview.PNG
Verifying the System Setup

Verify that the system works as expected:

  • Make Calls to and from intercom stations
  • Check that Call Buttons are placing the call to the correct destination
  • Verify that Relay operation is according to configured behavior
  • If required, adjust Audio Settings

Manually Added Devices

Some devices are not automatically discovered by the Edge Controller, and must be manually added. See Manually Added Devices for further details.

Audio Settings

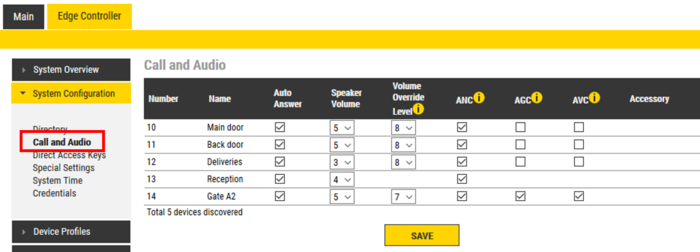

Edge CallAndAudio.png
Call and Audio Settings

The Call and Audio Settings menu include the following parameters:

  • Autoanswer: When un-checked incoming calls will be ringing (Private mode), and has to be accepted by the user. When checked the call will connect straight through (Open mode). On stations with full keypad the user can also toggle Autoanswer on/off by pressing the C-button for 2 seconds.
  • Speaker Volume: Sets the loudspeaker volume for the station.
  • Volume Override Level: Sets the loudspeaker volume during volume override. Volume Override is used by Group calls with Emergency priority.
  • ANC: Active Noise Cancellation. When enabled most of the background noise will be filtered away from the microphone signal.
  • AGC: Automatic Gain Control. When enabled the microphone signal will automatically be amplified when speaking with a low voice or if you are far away from the station.
  • AVC: Automatic Volume Control. When enabled the loudspeaker volume is adjusted according to the ambient noise level. The AVC will perform better if the "Speaker Volume" is set to a fairly low level, as this will give the AVC a more dynamic range for adjustments. Note that the AVC adjustment is disabled while the speaker is playing audio. Adjustments are made in silent periods (min. 100 ms silence required).
  • Accessory: If the station model supports accessories (headset, handset etc.), you can choose the type of accessory here
